Features
- Ideal for liquids, suitable for gas & steam
- 1/2 to 12" pipe size
- Accuracy: +/- 0.8 % of rate for liquids
- 8:1 flow turndown
- 4-20mA signal based on Hart Communication or FOUNDATION fieldbus
- Simple installation
- Reduced straight pipe run
- Direct mounting capable
- Centering mechanism

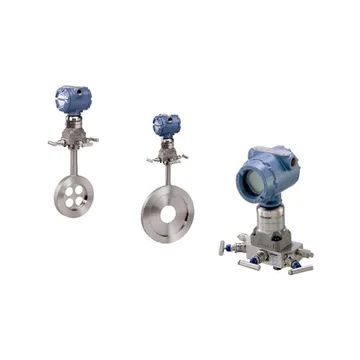

The Rosemount 3051SFC Series compact orifice flow meter is designed for closed loop control and general purpose monitoring applications. By integrating the 3051S pressure transmitter with the 405 Compact Orifice primary element, Rosemount has created a high performance, direct mount differential pressure flow meter lowering the installed cost by eliminating the need for fittings, impulse tubing, valves, adapters and manifolds by providing a single device packaged together for simplified installation.
Rosemount 3051SFC Series compact orifice flow meter is ideal for volumetric measurement of relatively clean liquids. Measurements are repeatable and accurate to ±0.80% of volumetric rate. A centering mechanism helps eliminate improper installation which can result in significant errors in readings.
Components of the Rosemount 3051SFC Compact Orifice Differential Pressure Flow Meter include the following:
Rosemount 3051S Multivariable Pressure Transmitter
The Rosemount 3051S transmitter enables pressure, temperature, and fully compensated mass and energy flow measurements. It is fully scalable and allows users to customize performance, functionality, diagnostics, and connection systems depending upon the application. The 3051S utilizes advanced software and functionality including a 4-20mA signal based on Hart® Communication or FOUNDATION™ fieldbus, user configured flow units, low flow cut-off, and process alerts for pressure and temperature.
Rosemount 405 Compact Orifice
The 405 Compact Orifice is suitable for liquid, gas and steam applications in ½ to 12" pipes. The 405 is available in two orifice styles: Conditioning and Standard. The 405C Conditioning Compact Orifice is ideal for applications with limited pipe run. Only requiring 2 pipe diameters from an upstream disturbance (double elbows, valves, reducers), the 405C Conditioning Compact Orifice delivers ±0.5% accuracy.
Applications for the Rosemount 3051SFC Compact Orifice Flowmeter
Oil and Gas Production
Refining
Petrochemical
Power
Utilities
Pulp and Paper
Natural Gas
