Ordering Information

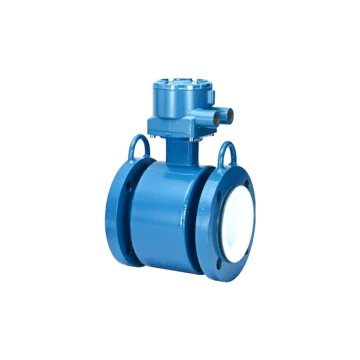

Model 8705 Magnetic Flanged Flowmeter Sensor
Lining material A(1) PFA
Electrode material H Nickel Alloy 276 (UNS N10276)
Electrode type A 2 Measurement Electrodes - Standard
Flange type and material(2) C Slip-On, Raised-Face, Carbon Steel
Flange rating(2) 1 ASME B16.5, Class 150 (1 /2 thru 24-in.); AWWA Class D (30 and 36-in.)
Coil housing configuration M0(3) Sealed, Welded Housing with Field Replaceable Terminal Block/Socket Module
Factory Mutual (FM) N5 FM Non-Incendive with Intrinsically Safe Electrodes, Class I Div 2; DIP
Miscellaneous options B3 Integral Mount with 8732EM Transmitter
Model 8732EM Magnetic Flow Transmitter – Field Mount
Transmitter Mount T Integral Mount
Transmitter Power Supply 2 DC (12 - 42 Vdc)
Outputs A 4 - 20 mA with digital HART Protocol & Scalable Pulse Output
Conduit entries 1 ½-14 NPT female
N5
Display Option M4 LOI
Neoprene and Linatex available in line sizes:
1-in. to 24-in. (25 mm to 600 mm) ASME Class 150, Class 300, Class 600 (fully rated) and EN 1092-1
30-in. and 36-in. (750 mm and 900 mm) AWWA Class D, ASME Class 150, and MSS SP44 Class 150
1-in. to 12-in. (25 mm to 300 mm) ASME Class 900
1 1/2-in. to 12-in. (25 mm to 300 mm) ASME Class 1500
1 1/2-in. to 8-in. (25 mm to 200 mm) ASME Class 2500.
Refer to Table 9 and Table 10 for standard flange offering.
Consult Technical Support for use with Ordinary Locations.
