Features
- Digital LCD
- Adjustable audible tone
- Adjustable auto switch off
- Optional hammer electrode or EIFS probe available
- 2-year warranty for manufacturing defects

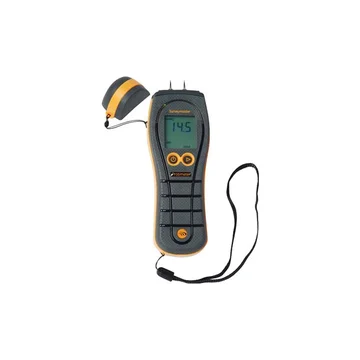

The Protimeter Surveymaster moisture meter is used for moisture measurement in buildings. Excessive moisture
in buildings will lead to decay and deterioration of components and decorative finishes. Professionals involved with the
identification, management, and remedy of dampness need the Protimeter Surveymaster moisture meter to help them to identify the
extent of the moisture penetration, diagnose the cause of the probe and monitor change in the moisture level.
The unique Protimeter Surveymaster moisture meter has two modes of operation - search and measure. Search
and measure help the user to distinguish sub-surface from surface moisture, essential information when trying to
establish the extent and cause of a dampness problem.
Search Mode - Non-Invasive
The Protimeter Surveymaster moisture meter features a search mode to be used to assess the moisture level
beneath the surface of solid walls and floors independently of surface conditions. The nominal depth of the measurement
is 3/4 in (19 mm); this depends on the density and other characteristics of the material. When held against the surface,
the Protimeter Surveymaster moisture meter transmits a signal into the material. The relative moisture level is shown
on the digital display and its moisture condition is shown on the accompanying scale of color-coded lights. This measurement
presentation helps the user to:
Look for moisture behind wall and floor coverings, such as tile and vinyl
Assess, in relative terms, if the material is in a dry, borderline or damp condition
Map the extent of the problem numerically
Non-invasive pinless radio frequency finds moisture at depth where moisture is not always directly visible - up to 3/4 in
(25.4 mm) below the surface
This mode of measurement is not adversely affected by the presence of surface moisture
Measure Mode
The Protimeter Surveymaster moisture meter features a measure mode, which is used to measure the moisture level at
the surface and at incremental depth when used with the auxiliary deep wall probes. Measure mode readings are precise
and specific to the immediate area of contact of the electrodes. The actual moisture content of wood is shown on the
Protimeter Surveymaster moisture meter's digital display with the corresponding moisture condition shown on the
accompanying scale of color-coded lights. Wood Moisture Equivalent (WME) values are shown for other non-conductive,
porous building materials.
Pin-type probes measure moisture in wood and other building materials (use provided calibration chart for more precise
readings).
Deep wall probes establish the presence of moisture in wall cavity insulation, sub and surface structures.
Applications for the Protimeter Surveymaster Moisture Meter
Shower pans, behind ceramic tile, fine finishes, water stains, tile and vinyl floor converings, joists, around toilets, drywall,
below grade floors and walls, plaster, masonry, concrete and concrete block.
Wood and wood floors, drywall, concrete and concrete block, stucco, plaster, masonry and EIFS.
Options Available to the Protimeter Surveymaster Moisture Meter
Exterior Insulation and Finished Systems (EIFS) probe finds moisture in exterior insulation finishing systems; hammer electrode
for wood floors.
