Features
- Loop-powered, 4 to 20 mA transmitter
- Proven polymer capacitive sensor for fast response and calibration stability
- Integral filtering and flow regulation
- Trouble-free indoor or outdoor mounting
- Microcontroller electronics in Type 4X/IP67 enclosure

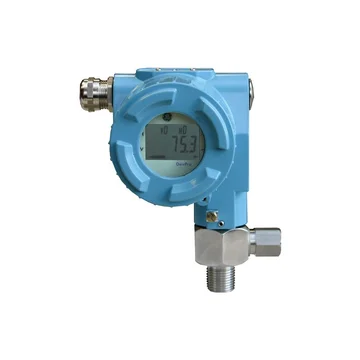

The Panametrics DewPro MMR30, formerly General Eastern, is a compact, mid-range moisture transmitter designed specifically for refrigeration
dryer manufacturers and users. The DewPro MMR30 measures dew point at line pressure or atmospheric pressure and installs
easily on a dryer outlet header.
The DewPro MMR30 uses a proven polymer capacitive sensor to provide a measurement range of 5°F to 185°F (-15°C to 85°C)
with ±1.8°F (±1.0°C) accuracy. The optional integrated display with user interface provides full programming and diagnostic
capability.
GE General Eastern MMR30 moisture transmitter specifications:
Sensing Element
Silicon-based polymer, capacitance principle, IC electronics
Dew Point Range
5°F to 185°F (-15°C to 85°C)
Dew Point Accuracy
±1.8°F (±1°C) above 32°F (0°C) dew point @ 25°C
Operating Temperature Range
Process: 5°F to 185°F (-15°C to 85°C)
Electronics: -40°F to 185°F (-40°C to 85°C)
Maximum Operating Pressure
250 psia (17 bar)
Inlet filter: 2 micron sintered stainless steel
Air Bleed Off at 100 psig
Approximately 1 SCHF (28 sl/h)
Output
Loop current 4 to 20 mA; 16 :A resolution
Flow Block
316 stainless steel with 1/2 in NPT-M or G 1/2 thread; (DIN ISO 228) and gasket seal
Wrench Width for Flow Block
1-5/8 in (42 mm)
Electronics
Microcontroller operated
Hardware Selectable Units
Dew point temperature in °F or °C
Supply Power
24 VDC nominal, tolerance 12 to 30 VDC
Optional Display
Four-digit numeric display with bar graph and matrix position indication. Four user interface keys for unit
selections, output adjustments and ranging.
Protection
Type 4X/IP67
