Features
- Accuracy based on percent of flow rate
- Mass flow ±0.15%
- Volume flow ±0.25%
- Gas flow ±0.50%
- ±0.002g/cc (±2kg/m3) density accuracy
- No moving parts to wear or replace
- Self-draining with a flow path that resists plugging
- Can be cleaned or sterilized in place (CIP/SIP)
- -60 to 300ºF (-50 to 150ºC) temp rating
- 1450 psi (100 bar) pressure rating
- Titanium ASTM Grade 9 wetted parts
- EHEDG certified, 3-A authorized, ASME BPE design

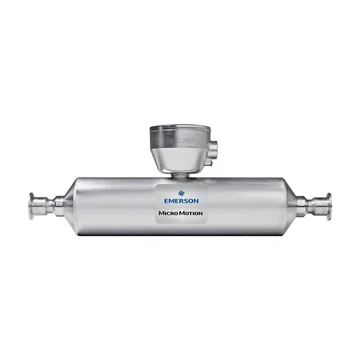

The Micro Motion T-Series Coriolis flow meters offer direct inline measurement of mass flow, density, concentration, volume flow and temperature from a single device. They are suitable for installation anywhere with no flow conditioning or where straight pipe run is required and are immune to fluid, process, or environmental effects for superb measurement confidence.
The straight-tube meter design is based on the ASME Bioprocessing Equipment Standard. With optional sanitary fittings, Micro Motion T-Series meters meet 3-A Sanitary Standards for Milk and Milk Products, and are EHEDG clean-in-place approved.
T-series meters are suited for a range of hygienic applications:
Batch Control
Bio-Reactor Feeds
Blending
CIP/SIP Processes
Concentration and Density Measurements
Filling & Dosing
Gases
High Purity Fluids
Mass Balance
Oil Field Services Stimulation Fluids
Process Control
Reactor Charging
Validated Processes
