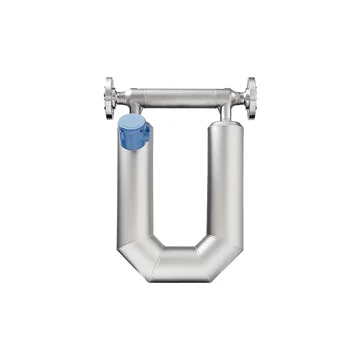

CMF300M426NRHZEZZX | Micro Motion ELITE CMF300M Coriolis Meter

Name: CMF300M426NRHZEZZX | Micro Motion ELITE CMF300M Coriolis Meter
Brand: Micro Motion
Price: 18715500000 IRR
Availability: InStock

برند :

Micro Motion

پارت نامبر :

CMF300M426NRHZEZZX

شماره انبار :

ST-19403

زمان تحویل:

6 هفته

قیمت حدودی:

1,871,550,000 تومان

به دلیل سفارشی بودن کالاها و نوسانات قیمت ارز، قیمت‌ها حدودی بوده. لطفا برای اطلاع از قیمت بروز کالا استعلام بگیرید.

تامین کننده

یاران صنعت فجر

ارسال به سراسر کشور

ضمانت اصالت و سلامت فیزیکی کالا

در مورد این محصول

ویژگی ها / Specifications

Brand	Micro Motion
Model	ELITE CMF300M Coriolis Meter
Condition	New & Original in Factory Packing
Factory Warranty	12 Months
Temperature accuracy	±1 °C ±0.5% of reading
Mass flow accuracy (Gas)	±0.35% of rate
Density accuracy (Liquid)	±0.0005 g/cm3 (±0.5 kg/m3) (standard)±0.0002 g/cm3 (±0.2 kg/m3) (optional)
Mass flow accuracy (Liquid)	±0.10% of rate (standard)±0.05% of rate (optional)
Mass flow repeatability (Gas)	±0.20% of rate
Volume flow accuracy (Liquid)	±0.10% of rate (standard)±0.05% of rate (optional)
Density repeatability (Liquid)	±0.0002 g/cm3 (±0.2 kg/m3) (standard)±0.0001 g/cm3 (±0.1 kg/m3) (optional)
Sensor maximum working pressure	1,730 psig (119 barg)
Mass flow repeatability (Liquid)	±0.05% of rate (standard)±0.025% of rate (optional)
Volume flow repeatability (Liquid)	±0.05% of rate (standard)±0.025% of rate (optional)

Description / توضیحات

Specifications Meter approvals, calibrations, and certifications: UL CSA IECEx NEPSI ATEX Ingress Protection EMC effects Features Get unparalleled measurement sensitivity and stability from this uniquely designed meter Gain real-time and in-process measurement integrity assurance with Smart Meter Verification Realize unmatched flow and density measurement performance in your most challenging liquid, gas and slurry applications Achieve superb measurement confidence with the highest immunity to fluid, process and environmental effects Improve scalability with a broad array of application coverage including hygienic, cryogenic and high-pressure Implement the widest process-measurement range – -400°F to 662°F (-240°C to 350°C) and up to 6,000 psig (414 barg) Widest range of meter approvals and certifications, including; CSA, ATEX, NEPSI, IECEx, Ingress Protection 66/67, SIL2 and SIL3, marine, and custody transfer approvals
