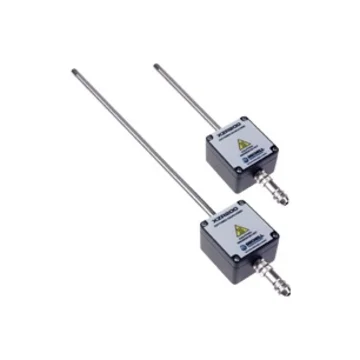

Michell Instruments XZR200 Oxygen Analyzer

Features

• Measurement ranges:
  • 0-25% (standard)
  • 0-100%
• Zirconium dioxide measurement technology
• Accuracy:
  • 0-25%; 1% of reading <0.5% O2
  • 0-100%; <1% of reading
• Configurable outputs:
  • 4-20 mA
  • 0 to 10 VDC
• Output resolution: 0.01V, 0.01mA or 0.01% O2
• Automatic or manual calibration
• Diecast aluminium case IP65
• Probe lengths: 8.27" or 15.75"
• Supplied with mating connector
• Sample temperature 752°F (400°C)

The Michell Instruments XZR200 Oxygen Analyzer is a cost effective zirconium-dioxide analyzer to measure percentage level oxygen in combustion processes, ambient air monitoring and many more applications. The unit is configurable to measure either 0-25% or 0-100% oxygen and offers manual or automatic calibration to suit the customer's needs. Two probe lengths are available (210mm & 400mm) for greater flexibility. Applications for the XZR200 include: Combustion control including oil, gas and biomass boiler applications Laboratory & building air quality monitoring including confined space personnel safety Composting Scientific including respiratory studies of a community or an organism, plants and animals Food and beverage packaging
