Features
- 0.001°C display resolution
- Accuracy - CTD9350-700:
- External reference temperature probe: ±0.100°C (±0.180°F)
- Internal reference temperature probe: 0.075% of reading, min. ±0.3°C (0.54°F)
- Accuracy - CTD9350-165:
- External reference temperature probe: ±0.100°C (±0.180°F)
- Internal reference temperature probe: ±0.100 °C (±0.180°F)
- 150mm immersion depth
- Dry-well material:
- CTD9350-700: Aluminium-Bronze
- CTD9350-165: Brass
- USB and Ethernet communication interfaces
- OPC UA, Serial communication, and HTTP connectivity
- 2400 baud rate

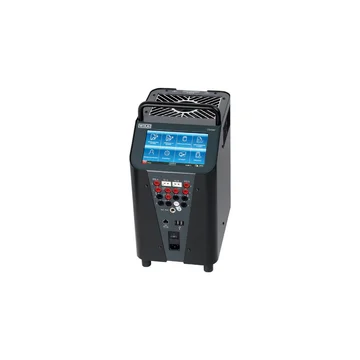

The Mensor CTD9350 dry well calibrator is matched to two different temperature ranges to meet your application needs. The CTD9350-165 is matched to a range of -35 to 165°C (-31 to 329°F), which is ideal for the biotechnology, pharmaceutical, and food industries. For applications above 40°C (104°F) such as power plants, plant construction, and the chemical industry, the CTD9350-700 with a max temperature of 700°C (1292°F) is used.
The CTD9350 enables the measurement of resistances, thermoelectric voltages, and current signals (from thermometers with a 0/4 to 20 mA transmitter) and their direct display in °C.
Applications:
Bio and pharmaceutical industries
Food industry
Power plants and plant construction
Measurement and control laboratories in the chemical industry
Demanding calibrations in production and laboratory
