Features
- 104 to 437°F (40 to 225°C) temperature range
- ±0.2 K accuracy
- 0.1°C resolution
- Tank dimensions: 60 x 165mm (2.36 x 5.91in)
- approx. 0.6 litres volume
- 5.91in (150mm) insertion depth
- Heating time: 10 min from 68 to 437°F
- Cooling time: 30 min from 437 to 122°F

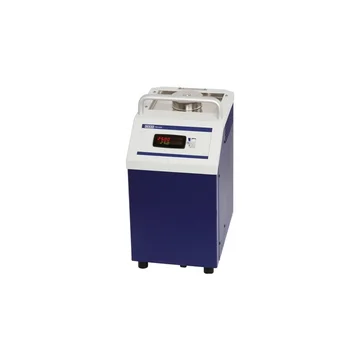

The Mensor CTB9100-225 Calibration Bath operates with temperature-controlled liquid tanks with a useable working range of 60 x 150 mm (2.36 x 5.91 in) depth. The maximum insertion depth of the test items reduces the heat conduction errors and thus leads to smaller measurement uncertainties. The calibration temperature, adjusted simply using two keys on the controller, can be very quickly controlled. The actual and set temperature can be displayed simultaneously on a large 4-digit, high-contrast LC display. Thus reading errors are virtually eliminated. Applications for the CTB9100-225 include: Calibration in the pharmaceutical industry and in the food industry On-site calibration of short temperature probes Simultaneous calibration of several probe
