Features
- Designed for Electrical and Industrial testing
- Insulation testing from 50 to 1000V and 200GΩ
- 2% test voltage accuracy
- Stabilized insulation test voltage
- Polarization Index (PI) and Dielectric Absorption Ratio (DAR) functions
- True RMS voltage measurement to 600V AC or DC with resolution from 0.1mV
- Frequency measurement from 15 to 450Hz
- Single range, faster continuity testing from 0.01Ω to 1MΩ
- Automatically test to a time limit
- CAT IV 600V / CAT III 1000V
- IP54 rated providing a weatherproof case to reduce the chances of water ingress
- Live circuit detection and protection
- Auto reverse polarity
- PASS/FAIL indication on limit alarms

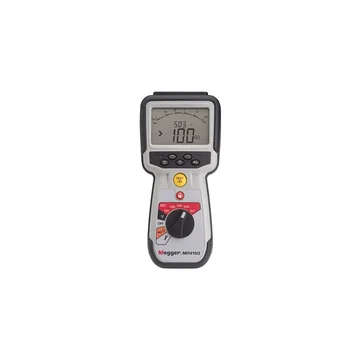

The Megger MIT410/2 insulation tester is a versatile instrument that offers testing from 50 to 1000V and 200GΩ. Though the MIT410/2 is
designed primarily for industrial applications, it offers a wide range of functions that allow it to excel in an exceptionally wide range
of applications including electrical installations, cable testing, motor testing, automotive, ESD, panel building, avionics, maintenance,
and others.
In addition to insulation testing, the Megger MIT410/2 also offers True RMS voltage measurement to 600V AC or DC as well as single range
continuity testing from 0.01Ω to 1MΩ and frequency measurement from 15 to 450Hz. All measurements are accurate up to ±2%. The large main
digital readout provides good visibility of all main measurement results while a second digital display provides additional data such as
test mode, test voltage, supply frequency or others. The included analog arc display shows essential charge and discharge characteristics
not visible on a digital display and displays as a single pointer "needle" with response similar to a moving coil meter. The MIT410/2 also
includes Polarization Index (PI) and Dielectric Absorption Ratio (DAR) functions.
The Megger MIT410/2 insulation tester is sealed to IP54, providing a weatherproof case to reduce the chances of water ingress, including the
battery and fuse compartment. Rubber over-molding combines the tough shock absorbing outer protection with excellent grip providing an almost
indestructible case. The MIT410/2 offers CAT IV 600V / CAT III 1000V safety protection.
Typical applications for MIT410/2 includes:
Commercial Avionics
Military Land, Marine and Air communications
Manufacturing/production line goods
Electrostatic measurement
Component testing
Battery powered traction and lifting equipment
