Features
- 0.05Ω to 1500Ω resistance range
- 0.5mA to 35.0A current range
- Large elliptical clamp design
- Smooth mating surfaces on the clamp head
- Visual alarm
- Noise filter function
- Intelligent data hold function
- Data storage of 2,000 records
- Time- and date-stamped results
- Opto-coupled IrDA-USB for data storage
- CATIV 600V operation

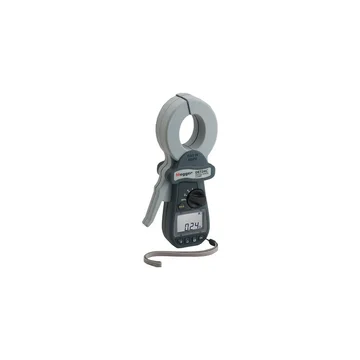

The Megger DET14C and DET24C clamp-on ground resistance testers set new standards in terms of access,
performance, features, simplicity of operation and safety. The DET14C and DET24C are used to measure earth/ground
resistance in multiple loop installations without disconnecting the ground.
Designed with flat core ends, these units prevent dirt build-up, ensuring measurement integrity and improved
reliability over products with interlocking teeth. Other enhancements include safety to CATIV 600V, a built-in
filter function for electrically noisy environments, time and date stamped stored test results and ultra long
battery life. The DET14C logs up to 256 records. The DET24C logs up to 2,000 records and has an opto-coupled
IrDA-USB interface to download data. Megger has taken what is now a standard test method and significantly
improved its field applicability.
The DET14C and DET24C are designed to quickly measure ground electrode resistance in applications where this type
of test method can be used and/or verify the integrity of ground connections. The goal of ground resistance testing
is to ensure that the resistance ground electrode system is low enough to prevent or limit voltage rises caused by
fault current, electrical surges, lightning strikes, etc.
Clamp-on ground testers work in applications where there is a loop resistance to measure with ground paths in the

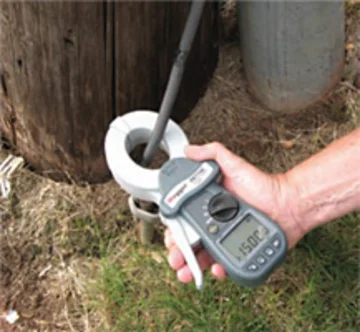

system (the more ground paths, the closer to the actual resistance). A utility pole ground system is a classic example
of this type of application.
Typical end users include:
Power utilities
Electrical contractors/electricians
Specialist grounding contractors
Electrical testing companies
Telecommunications companies
Railroads
Mining companies
Typical testing applications for the Megger DET14C and DET24C Clamp-on Ground Resistance Testers:
Pole grounds
Service entrance/meter ground electrodes
Service panels
Pad mount transformer grounds
Transmission tower grounds - utlility ground cables
Telephone pedestals
Telephone cabinets
Lightning protection ground electrodes

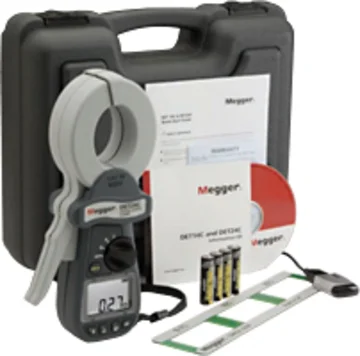

The Megger DET14C and DET24C Clamp-on Ground Resistance Testers ship complete with:
Carrying case
Carrying strap (wrist loop)
User guide CD-ROM
Calibration check
Battery AA (Alkaline) (4 required)
USB IrDA dongle (DET24C only)
PowerDB Lite software (DET24C only)
