Features
- Ceramic liner with non wetted electrodes
- Excellent chemical and abrasion resistance
- Increased safety and hygiene with absolutely leak tight design
- No metals in contact with the medium
- No insulation of the electrodes
- No wear or corrosion of the electrodes
- Stable flow measurement
- Low conductivities to 0.05 μS/cm
- Fully vacuum resistant
- Insensitive for temperature shocks
- Sterile and hygienic; conformity to FDA requirements
- Excellent long term stability and accuracy
- Alternative for mass flow meter (for the price of an electromagnetic flow meter)

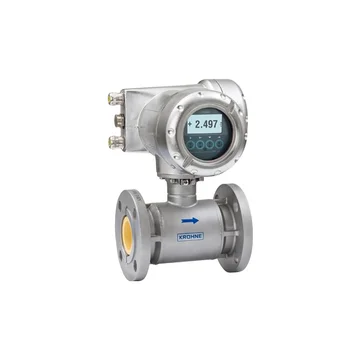

The OPTIFLUX 7300 combines the advantages of non wetted capacitive electrodes, a ceramic
liner and the IFC 300 converter. This electromagnetic flow meter can be used for noisy
applications, low conductivities, mediums tending to form an insulating film, applications with
high vibrations, and oxidizing, abrasive and toxic mediums.
Instead of conventional electrodes that have a direct contact with the process liquid, OPTIFLUX 7300 has a non-contacting
capacitive signal pick-up. The electrodes are designed as large-area capacitor plates, mounted behind the ceramic liner.
Because the electrodes have no contact with the medium, unwanted catalytic action with metallic parts is eliminated. A
second benefit is that the insulation of electrodes no longer forms a risk. In case of a medium that tends to form a non
conductive surface coating on the tube wall, the signal pick up between medium and electrodes will not be interrupted.
The smooth and pore free ceramic tube construction does not leak and is CIP / SIP resistant, making it highly suitable for
hygienic applications in for example the food & beverage and pharmaceutical industry. It is very hard, non permeable and has
an extreme and broad chemical resistance, fulfilling requirements of the chemical industry.
The construction of the OPTIFLUX 7300 offers an absolute leak tight solution, because leakage through the liner and leakage
along the electrodes is not possible.
The IFC 300 converter standardly includes extensive diagnostics of the process and meter and powerful filter settings for
stable flow measurements.
Industries include:
Chemical
Food & beverage
Pharmaceutical
Paper & pulp
Wastewater
Machine building
Primaries
Applications include:
Toxic, aggressive and abrasive mediums
Emulsions: latex, emulsion paints
Adhesives
Organic mass production
Low conductive mediums: (bio-) alcohols, spirits, glycols, glycerine
Abrasive slurries
Water mixed with oil or metallic particles
Fibrous products
Oil-based products: vegetable oils
Dairy products: fat creams, milk, cheese, yoghurt with fruit particles
Cement
