Features
- Maximum process temperature
- 158°F (PTFE)
- 482°F (ceramic)
- Flow rates for liquids:
- Lower limit: 0.66 gph
- Upper limit: 15,850 gph
- Flow rates for gases:
- Lower limit: 0.011 scfm
- Upper limit: 217 scfm
- Measuring range: 10:1
- Accuracy: ±2.5 %
- Operating pressure up to 44,100 psi
- Resistant to extreme chemical, mechanical and thermal loads
- All components replaceable
- High application security, even with extremely small flows
- Excellent long-term stability

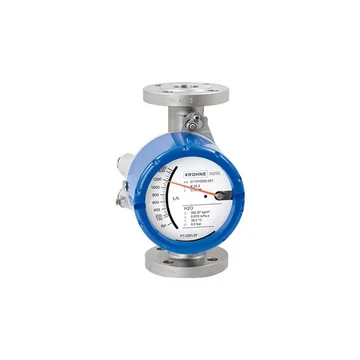

The KROHNE H250-C variable area flow meter is an all-metal instrument designed for use with aggressive media.
With all components coming in contact with the medium available in either PTFE or ceramic, the H250-C can be
used with virtually all acids and alkalis. By including a wide range of display, communication and other options,
the H250-C is a reliable and versatile instrument ideal for measuring the flow of liquids and gases in nearly
any application or environmental condition.
KROHNE H250-C variable area flow meters are available in sizes from 1/2" to 4" with corresponding flow rates
ranging from as low as 0.66 gph (0.011 scfm for gases) to as high 15,850 gph (217 scfm). The basic accuracy for
flow readings is ±2.5%. Due to its sturdy, all-metal construction, the H250-C ensures high resistance to pressure,
temperature and media. The modular design of the meter and indicator allows users to adapt the H250-C to
customer-specific applications including those in hazardous areas.
The KROHNE H250-C variable area flowmeter operates of the float principle. Depending on the flow rate, the float
will assume a certain vertical position in the tube. The float position is transmitted by a magnetic coupling
system to the scale. This simple, time-tested design will ease installation time and lower maintenance demands.
The KROHNE H250-C variable area flow meter is available with the following indicator options:
KROHNE M9 Indicator
Simple, low-cost installation: Measure and display without auxiliary power supply
Large scale for good readability
2 limit switches (NAMUR or 3-wire transistor)
2-wire analog output 4 to 20mA with HART - Profibus PA interface
6-digit flow counter with pulse output (non Ex)
Optional stainless steel housing for corrosive atmospheres
ATEX, FM, CSA approvals for use in hazardous areas; SIL 2 certified

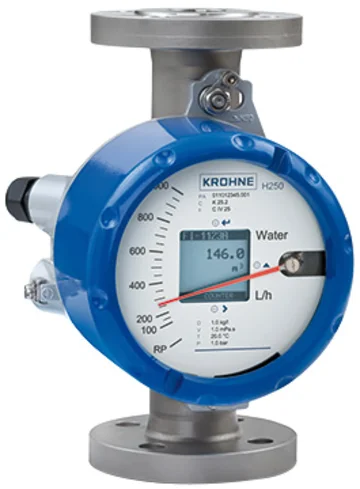

KROHNE M10 Indicator
Digital indicator with I/O
2 limit switches (NAMUR or 3-wire transistor
2-wire analog output 4 to 20mA with HART
12-digit flow counter with pulse output and reset input
Pressure resistant, enclosed housing
ATEX, FM, CSA approvals for use in hazardous areas
