Features
- Two Passive 4 to 20mA loop outputs standard
- Modules can be added for additional capabilities
- USB port for field upgrades using standard Flash Drive
- 12 to 24VDC, selectable 100 to 240VAC optional
- Advanced Boolean relay logic provides 4 logic options
- Configurable LCD display
- 2 horizontal digital bar graphs
- 4 LED relay status indicators
- Derived measurements
- 1/4 DIN enclosure rated NEMA 4X/IP65 (front face only)
- Panel or wall mount

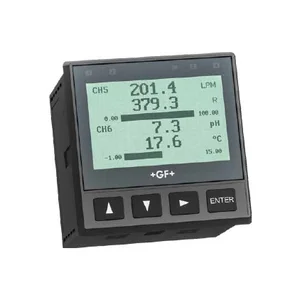

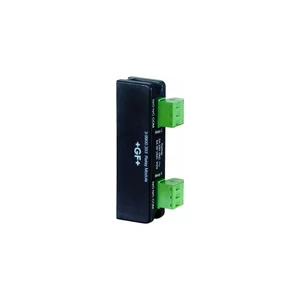

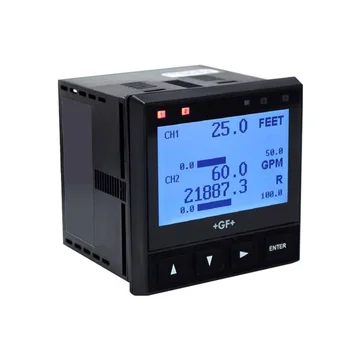

The GF Signet 9950 Two-Channel Transmitter is a two channel controller that can support two sensors of same or different types in one instrument. The sensor types supported by the 9950 are Signet Flow, pH/ORP, Conductivity/Resistivity, Salinity, Temperature, Pressure, Level, Dissolved Oxygen, and devices that transmit a 4 to 20 mA signal with the use of the 8058 iGo Signal Converter. The 9950 includes advanced features such as derived functions, advanced multiple relay modes, and timer based relay functions. Derived functions allows for the control of a relay or current loop with the sum, delta (difference), or ratio of two measurements, for example delta pressure and delta temperature. Multiple relay modes allow up to three signals to be used for the control of a single relay. This can be any combination of analog and binary inputs. The timer relay modes allow relay to be activated on a repeating basis from every minute to once every 30 days. Weekday timer mode allows a relay to be turned on for specific days and times. The GF Signet 9950 Transmitter is compatible with 3-9950.393 relay modules providing the ability to interface up to four binary inputs. The binary inputs are compatible with either open collector or mechanical contacts. The binary inputs can supply power to the four inputs or accepts powered outputs from external devices. These inputs can be used with level switches, flow switches, pressure switches or other devices. The inputs can be used to directly control the relays of the 9950 or can be used in combination with the measurement readings for advanced control of your process. Applications for the GF Signet 9950 Transmitter include: Wastewater treatment Reverse osmosis Deionization Chemical manufacturing / addition Metal and plastic finishing Fume scrubber Cooling tower Media filtration Chemical dosing/ injection Aquatic life support Pools & fountains Rinse tanks Chemical neutralization
