Description / توضیحات

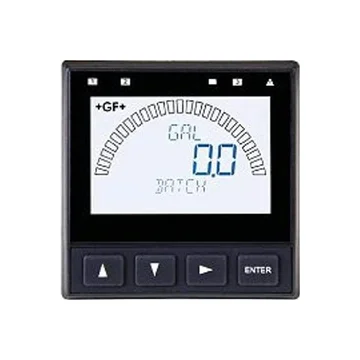

The Signet 9900 Transmitter provides a single channel interface for many different parameters including Flow, pH/ORP, Conductivity/Resistivity, Salinity, Pressure, Temperature, Level, Dissolved Oxygen, and other sensors that output a 4 to 20 mA signal. The 9900 is offered in both panel or field mount versions. Both configurations offer an extra large (3.90” x 3.90”) auto-sensing backlit display features “at-a-glance” visibility that can be viewed at 4-5 times the distance
The 9900 can run on 12 to 32 VDC power (24 VDC nominal), and can also be loop powered with compatible sensors.
Features
NEW! Modbus Module supports RS485 Serial Modbus Communications
Multiple sensor types supported with one instrument
“Dial-type” digital bar graph
Modules are field installable and replaceable anytime
Optional Relay Module for addition of two dry contact relays
Optional H COMM Module for two-way communication
Optional Batch Module for Batch Control
Modbus Module for connection to Serial, RS485, Modbus networks
One 4 to 20 mA output in base unit. One additional 4 to 20 mA available with optional module
Rear Enclosure kits for panel, wall or pipe mounting
Warning and Relay LED indicators for “at a glance” visibility
Customizable features including digital label for custom identification
Optional PC COMM configuration tool for configuration at a PC
Model and Suffix Codes
9900 Base Unit - Single Channel, Multi-Parameter, 4 to 20 mA, Open Collector, DC power
