Features
- Flow rate range 0.5 to 6 m/s (1.6 to 20 ft/s)
- For up to 103 bar (1500 psi) pressure
- For up to 149°C (300°F) temperatures
- DN15 to DN300 (0.5 to 12 in) pipe range
- 316SS body (1.4401)
- Tungsten Carbide or SS shaft
- 7.6 m (25 ft) cable included
- CE approved

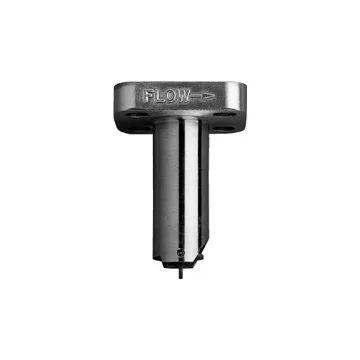

The GF Signet 525 Metalex ™ paddle wheel flow sensor combines stainless steel construction with insertion paddle wheel technology. The result is a highly reliable sensor suitable for operation at extreme pressures and temperatures. The GF Signet 525 Metalex ™ paddle wheel flow sensor features a Tungsten Carbide shaft and a Fluoroloy B ® / PTFE bearing, which provide excellent wear resistance for extended service.
The GF Signet 525 Metalex ™ paddle wheel flow sensor's comprehensive fitting program allows installation in steel lines with the mini-block for small diameters and either the mini-tap or saddle for pipes up to DN300 (12 in). The GF Signet 525 Metalex ™ paddle wheel flow sensor has a self-generating output signal allows use with any battery operated flow totalizer, including the GF Signet 8150 flow totalizer.
Applications of GF Signet 525 Metalex ™ Paddle Wheel Flow Sensor
Boiler Feedwater Monitoring
HVAC Systems
Chemical Transport
Heat Exchangers
Reverse Osmosis
Cooling systems
Not Suitable for Gases
