Features
- Strong, compact PPS body
- Fully encapsulated electronics
- Two flow ranges available: 0.03 to 0.7 gpm and 0.3 to 3.2 gpm
- Simple mounting
- 1/4 in. NPT or ISO threads for simple pipe or tubing connection
- Measures clear and dark liquids

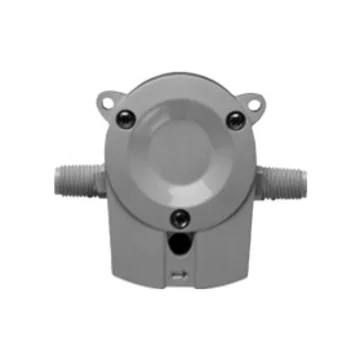

The GF Signet 2000 MicroFlow Paddle Wheel Flow Sensor is constructed from Polyphenylene Sulfide (PPS) which
provides high material strength. Offering two flow ranges starting at 0.03 or 0.7 gpm, the GF Signet 2000
MicroFlow paddle wheel flow sensor is compatible with clean process liquids regardless of fluid color or opacity.
Using standard hardware for mounting, the GF Signet 2000 MicroFlow paddle wheel flow sensor can be connected
to flexible tubing or rigid pipe. The GF Signet 2000 MicroFlow paddle wheel flow sensor operates with a power
input of 5 to 24 VDC @ 10 mA maximum from the indicating instrument. Operating costs are reduced and
maintenance requirements are minimized because the GF Signet 2000 MicroFlow paddle wheel flow sensor has
only one moving part and a low pressure drop across the sensor.
Applications for the GF Signet 2000 MicroFlow Paddle Wheel Flow Sensor
Coolant Flow
Dosing
Batch dispensing
Not recommended for strong oxidizers
