Features
- Continuous recording of all values with no gaps
- Graphical summary of data
- Min, Max, Average RMS values
- Actual transient display (>100 μs) with time stamp
- Flicker according to EN 61000-4-15
- individual harmonic and THD values with trends
- Statistical analysis of voltage event
- Includes PowerLog software package

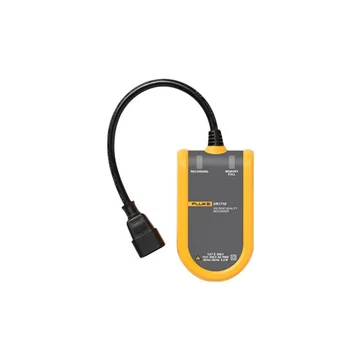

The Fluke VR1710 is a single-phase, plug-in voltage quality recorder. An extremely easy-to-use solution for
detecting and recording voltage quality problems, it allows for immediate action and less downtime. The Fluke VR1710
satisfies the needs of maintenance and facilities management personnel in industrial, utilities, and large service
organizations where reliable voltage quality is essential to the operation of the business. Voltage quality parameters
including RMS average, transients, flicker, and harmonics up to the 32nd are recorded using a user-selected average
period from 3 seconds to 10 minutes.
Applications include:
Voltage recording
Distortion measurement
Flicker measurement
Capture voltage transients
Ships complete with:
Plug-in Fluke VR1710
USB cable
PowerLog software CD
Universal power cord adapters
