Features
- Automatically measure power and power quality parameters
- At-a-glance power quality health for faster troubleshooting
- View V/A/Hz, power, dips, swells, and harmonics data
- Capture high-speed transients up to 8 kV
- Power directly from measurement circuit without a line cord
- 1000 V CAT III / 600 V CAT measurement category
- 1000 V rms / 1000 V dc (1700 Vpk) maximum input voltage
- 80 kS/s at 50/60 Hz sampling frequency
The Fluke 1770 Series three-phase power quality analyzers eliminate the complexities of power quality logging, troubleshooting,
and analysis. Engineered to be the faster, easier way to perform power quality studies, the 1770 Series offers automatic
measurements, a straightforward user interface and setup, best-in-class specifications, and a simplified reporting platform.
The instrument can also be powered directly from the measurement circuit, eliminating the need to find a power outlet or
use a lengthy extension cord.
Whether you're performing a quick system check or a detailed power quality study, consistent data is key. The Fluke 1770 Series
offers a unique automatic measurement capture system that helps ensure you're collecting the right data every time, while still
giving you the flexibility to select and adjust specific parameters as needed. More than 500 power quality parameters are captured
by default and the guided setup makes it easy to select the right parameters for the system you're working on. Logged data is
instantly viewable, downloadable, and shareable with Fluke Energy Analyze Plus software so you never need to wait to finish a
session before reviewing results or analyzing data.
The Fluke 1773 Power Quality Analyzer includes:
FLUKE-1773 Power Quality Analyzer
I17XX-FLEX1500 24 iFLEX 1500A 24 IN (2.0M) current probes (set of four)
FLUKE-17XX flat cable voltage test lead 3-phase+N
AC285 black alligator clips (set of four)
AC285 green alligator clip
Black 1M USB-C cable
Line cords (US, EU, UK, AUS, BRA)
FLK-17XX 0.18M test lead set
Green test lead
FLUKE-177X-4204, WI-FI/BLE module
Cable marker set (for voltage and current)
FLUKE-174X-MA-C8 wall outlet adapter
The Fluke 1775 Power Quality Analyzer includes:
FLUKE-1775 Power Quality Analyzer
I17XX-FLEX1500 24 iFLEX 1500A 24 IN (2.0M) current probes (set of four)
FLUKE-17XX flat cable voltage test lead 3-phase+N
AC285 black alligator clips (set of four)
AC285 green alligator clip
Black 1m USB-C cable
Line cord
FLK-17XX 0.18M test lead set
Green test lead
MP1-3R/1B Magnet Probe set
FLUKE-174X-HANGER magnetic hanging kit
FLUKE-177X-4204, WI-FI/BLE module
Cable marker set (for voltage and current)
FLUKE-174X-MA-C8 wall outlet adapter
Black soft case

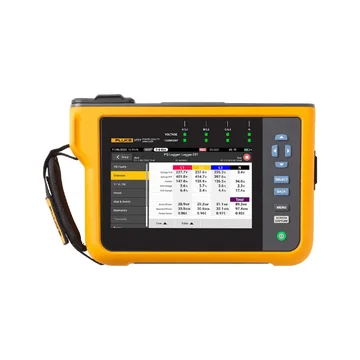

The Fluke 1777 Power Quality Analyzer includes:
FLUKE-1777 Power Quality Analyzer
I17XX-FLEX1500 24 iFLEX 1500A 24 IN (2.0M) current probes
FLUKE-17XX flat cable voltage test lead 3-phase+N
AC285 black alligator clip
AC285 green alligator clip
Black 1m USB-C cable
Line cord
FLK-17XX 0.18M test lead set
Green test lead
MP1-3R/1B Magnet Probe set
FLUKE-174X-HANGER magnetic hanging kit
FLUKE-177X-4204, WI-FI/BLE module
Cable marker set (for voltage and current)
FLUKE-174X-MA-C8 wall outlet adapter
FLUKE-1777 HARDCASE rolling hard case
