Features
- Range: -20 to 400°C (–4 to 752°F)
- 1.86 mRad spatial resolution
- 76,800 (320 x 240) pixel resolution
- 30Hz frame rate
- 34.1° x 25.6° field of view
- 532:1 distance-to-spot ratio
- ±2°C or 2% (at 25°C nominal, whichever is greater)
- Fixed focus, minimum focus distance 46cm (18in)
- IR-Fusion technology with five AutoBlend modes
- Four picture-in-picture modes
- Thermal sensitivity: ≤0.045°C at 30°C target temp (45mK)
- 7.5 to 14μm spectral band
- Rugged 3.5 inch (landscape) 320 x 240 LCD display
- Built-in visible light digital camera (5MP)
- Engineered to withstand 2 meter (6.5 feet) drop
- IP54 enclosure rating
- Voice annotation
- Internal 4GB memory and 4GB micro SD card
- Create and email reports onsite with Fluke Connect

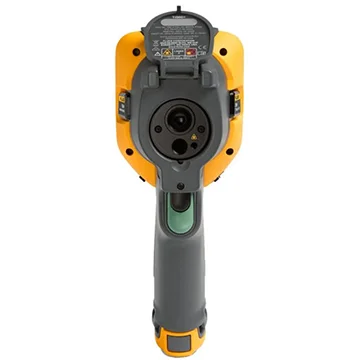

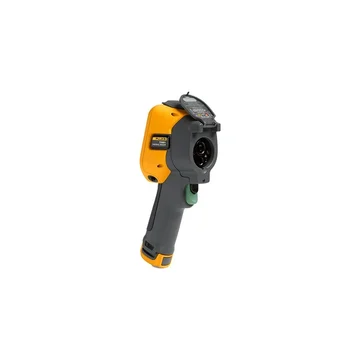

With the Fluke TiS60+ you can boost you or your team's performance with 320 x 240 resolution. Infrared images taken with the TiS60+
capture smaller temperature differences from farther away. If you are new to thermal imaging or if your camera is being used by a team
with varying levels of thermal imaging experience, the TiS60+ offers fixed focus with the ability to capture quality images from farther.
Often the next big challenge with infrared images is to make sure that the images taken by the team can quickly be added to work orders.
The TiS60+ features IR Photo Notes making this easy. They give the camera operator a simple way to add pictures associated with the image
documenting the equipment name or the room location associated with the thermal image so that the person creating the work order can send
the technicians to the right location for repairs.
