Features
- 14 to 1832°F temperature range
- 0.93 mRad, 1065:1 spatial resolution
- 640 x 480 detector resolution
- 1280 x 960 with SuperResolution
- Up to 614,400px infrared resolution
- 34°H x 24°V field of view
- ±2°C or 2% accuracy at 25°C
- 7.5 to 14μm spectral range
- 60Hz frame rate
- On-screen emissivity correction
- RoHS compliant
- 2-year warranty

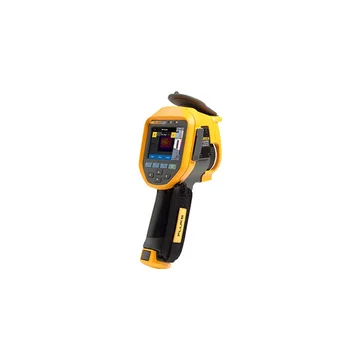

Fluke Ti480 PRO infrared camera offers extreme thermal sensitivity to detect even the slightest surface temperature differences, delivering highly accurate thermal images
on a crisp, clear LCD display. It can measure temperatures up to 1832°F with 7.5 to 14μm long wave infrared spectral band.
Temperature differences can be distinguished more easily with an expanded color palette that includes a greater spectrum of yellows and greens in the display.
The intuitive touchscreen interface is easy to navigate featuring single handed image capture, review, and save. Functions include center-point temperature measurement,
hot and cold spot markers with three additional user defined spot markers.
Fluke SmartView software and Fluke Connect mobile app enables remote control and analysis via smartphones, mobile devices, or desktop computers. The IR-PhotoNotes
annotation system captures digital images of the surrounding area to reference conditions or actual location and you can save any additional details
to the file with voice annotation.
