Features
- Up to four independent floating isolated inputs
- 60, 100, 200 and 500 MHz bandwidths
- Up to 5 GS/s real time sampling
- 125 MS/s sample rate
- 10,000 points per trace waveform capture (scope mode)
- CAT III 1000 V/CAT IV 600 V safety rated
- IP51 rating - dust and drip-proof

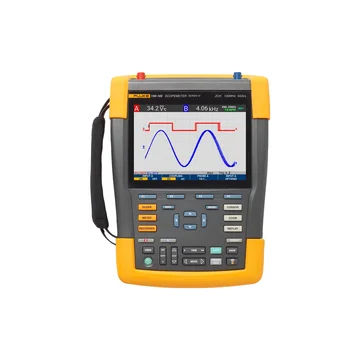

The Fluke 190 Series III oscilloscope is a high-performance, portable oscilloscope with dust and drip-proof IP51 rating, as well as a CAT III 1000 V / CAT IV 600 V safety rating. The 190 Series III is an excellent choice for installing, commissioning and maintaining industrial machinery, automation and process controls, and power conversion electronics from DC to 500MHz.
The 190 Series III comes in two or four channel models with 60, 100, 200 and 500MHz bandwidth options. Fast sampling rates up to 5.0 GS/s, 200ps resolution and deep memory of 10,000 samples per channel allow high-accuracy capture and display of waveform details, noise, and other disturbances.
The Fluke 190 Series III ScopeMeter is available with optional FlukeView 2 ScopeMeter software, which includes features to enhance the functionality of the meter. FlukeView 2 ScopeMeter software can:
Documentation—transfer waveforms, screens and data to your PC for printing or importing data into a report
Add text to ScopeMeter Test Tool settings—give operators guidance when recalling settings
Archive—create a library of waveforms for easy reference, or waveform comparison
Analysis—use cursors or export data to another analysis program
