Features
- AC/DC voltage (up to 1000V) & current (up to 400mA)
- 0.01MΩ to 2GΩ insulation test
- Smoothing mode dampens display fluctuations
- 0.1Ω to 50MΩ resistance
- Frequency measurement up to 99.99kHz
- Up to 9999μF capacitance
- Diode and continuity tests
- -40 to 998°F (-40 to 537°C) temperature range
- Filter for motor drive measurements
- CAT III 1000V, CAT IV 600V measurement category
- 3-year warranty

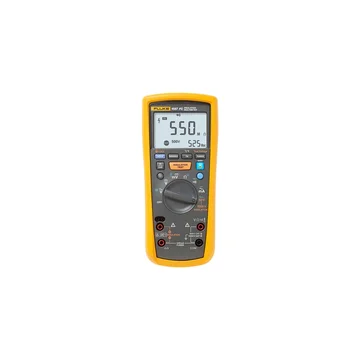

The Fluke 1587 FC insulation multimeters combine a digital insulation tester with a full-featured, True RMS
digital multimeter in a single compact, handheld unit, which provides maximum versatility for both troubleshooting and
preventative maintenance.
The 1587 FC has a large, 6000 count display with backlight. It measures AC/DC voltage, DC
millivolts, AC/DC milliamps, resistance, continuity, capacitance, diode test, temperature, Min/Max, and frequency.
For added user protection it has live circuit detection which prevents an insulation test if voltage greater than 30V
is detected, as well as an auto-discharge of capacitive voltage.
The new Fluke Connect measurement app adds some valuable diagnostic functions:
PI/DAR timed ratio tests with TrendIt graphs identifies moisture and contaminated insulation problems faster
Memory storage through Fluke Connect eliminates writing down results, reduces errors and saves data for historical tracking over time
Temperature Compensation through app for establishing accurate baselines and relevant historical comparisons
Historical tracking and trending of assets identifies degradation over time, allows real-time decisions to be made in the field
