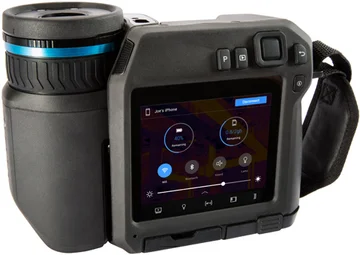

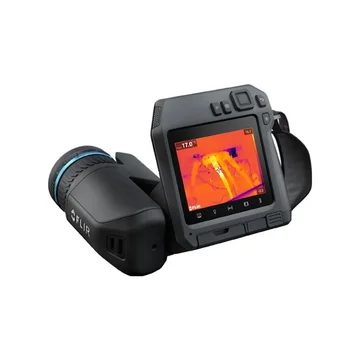

FLIR T540 Thermal Imaging Camera

Features

• 180° rotating optical block
• 4" capacitive touch screen
• 464 x 348 (161,472 pixels) IR resolution
• UltraMax Resolution: 645,888 effective pixels
• Less than 30 mK @ 30°C sensitivity
• Up to 2732°F temp ranges
• 1-6x continuous digital zoom
• 30Hz image frequency
• 7.5 to 14.0μm Spectral range
• Interchangeable AutoCal lenses
• Automatic lens identification

The FLIR T540 Thermal Imaging Camera is designed to support advanced thermographers and IR service consultants in the power generation, electrical distribution, and manufacturing industries by focusing on resolution, speed, and ergonomics. With the 180° rotating optical block, vibrant LCD display, and streamlined form factor, the T540 offers inspectors the necessary tools to support comprehensive inspections in challenging conditions, especially when equipment is obstructed from view or difficult to access. Laser-assisted autofocus guarantees you'll get the tack-sharp focus needed for the most accurate temperature readings, while FLIR Vision Processing powered by MSX, UltraMax, and proprietary adaptive filtering algorithms - ensures crisp thermal imagery. Scan for potential faults from a safer distance and over larger areas thanks to a selection of intelligent, interchangeable AutoCal optics, outstanding temperature measurement accuracy, and up to 464 x 348 (161,472) true native resolution.
