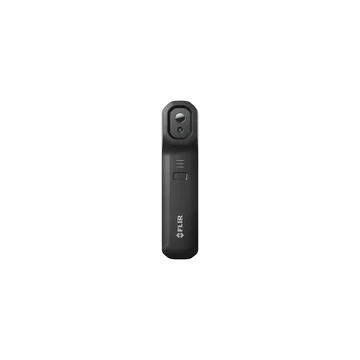

FLIR ONE Edge Pro Thermal Camera

Features

• 12μm pixel size
• 160×120 (19,200 pixels) resolution
• 70 mK sensitivity
• -4°F to 248°F (-20°C to 120°C) and 32°F to 752°F (0°C to 400°C) object temperature ranges
• ±3°C (5.4°F) or ±5% accuracy
• 8 to 14μm spectral range
• 54° ±1° HFOV
• 42° ±1° VFOV
• Fixed 30cm to infinity focus
• 30cm to infinity spot measurements
• IEEE 802.11 a/b/g/ Wi-Fi
• Remote operation up to 100ft (30m) from smart device via Wi-Fi
• Infrared, visual, and MSX presentation modes
• Up to 1.5-hour battery life

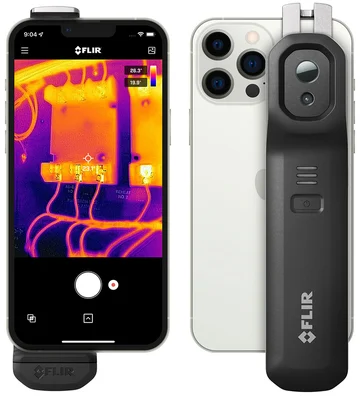

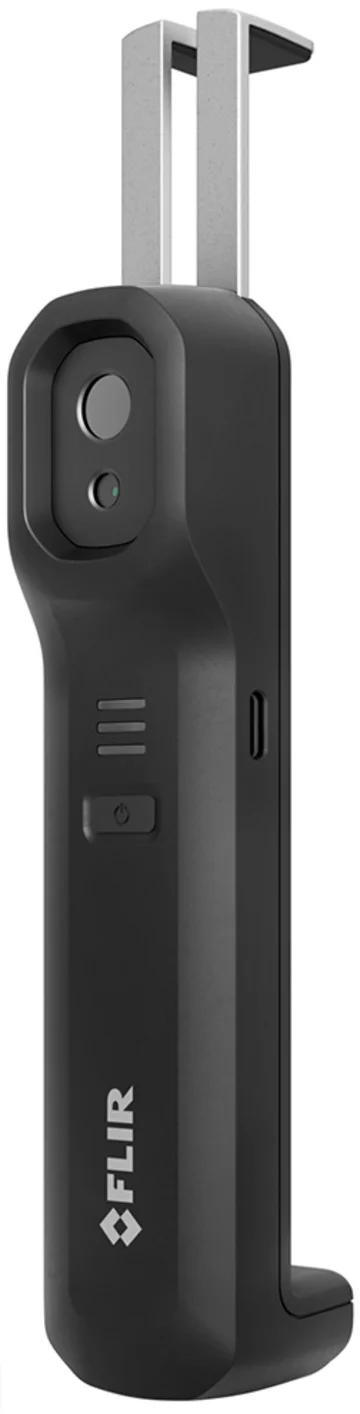

The FLIR ONE Edge Pro thermal camera is an innovative, rugged thermal imager that wirelessly connects to the user’s smart device to allow remote inspection of difficult-to-reach targets. It can also be clipped onto a phone or tablet for one-handed operation. Combining VividIR and FLIR MSX, the ONE Edge Pro allows the user to take crisp thermal images from any position or angle with a natural grip. VividIR combines multiple image frames to deliver a sharper image. FLIR MSX (Multi-Spectral Dynamic Imaging) allows the user to easily recognize where problems are located and identify targets. FLIR Ignite allows easy upload of images and videos from the ONE Edge Pro to the cloud where the user can edit, organize, store, and share data. Compatible with iOS and Android smartphones and tablets, the FLIR ONE Edge Pro can be used without limitations, regardless of carrier, operating system, size, or future smart device upgrades.
