Features
- Easily investigate moisture issues and troubleshoot quickly
- Ranges:
- Pin Moisture: 7 to 30% with ±1.5% accuracy
- Pinless moisture: 0 to 100
- Relative Humidity: 0 to 100% with 2.5% RH accuracy
- Air Temperature: 32 to 122°F with ±1.1°F accuracy
- Dew Point: -22 to 122°F with ±1.8°F accuracy
- Vapor Pressure: 0.0 to 12.0 kPa with ±0.05 kPa accuracy
- Mixing Ratio: 0 to 560 GPP with ±2 GPP accuracy
- Laser and cross hair easily references the exact location of the potential moisture issue
- FLIR 4800 pixels (80 × 60) Lepton microbolometer detector
- 8 to 14μm spectral response
- 51° × 38° field of view
- QVGA (320 x 240 pixel) 2.3” color TFT graphical display
- Internal memory stores 9999 images
- Convenient and easy to operate
- Rugged, portable design with intuitive menu system
- Document readings and images to share via included USB cable
- Free FLIR Tools PC software quickly generates reports

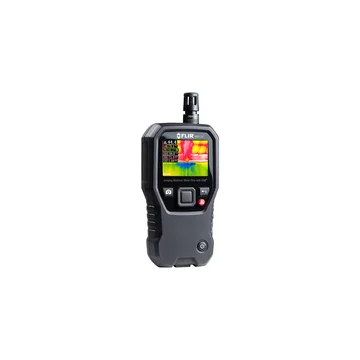

The FLIR MR176 Imaging Moisture Meter with IGM™ is an all-in-one tool equipped with a built-in thermal camera that can show you exactly where to measure moisture.
Featuring Infrared Guided Measurement (IGM) technology, the MR176 helps you quickly scan and target moisture issues, visually guiding you to the spot where you
can confidently take measurements and analyze readings. An integrated pinless sensor and an external pin probe provide the flexibility to take either non-intrusive
or intrusive measurements. Coupled with a field-replaceable temperature and relative humidity sensor, and automatically calculated environmental readings, the MR176
delivers added convenience and ease of use, producing the right measurements — faster.
The FLIR MR176 Imaging Moisture Meter allows customization of thermal images: select which measurements are integrated (moisture, temperature, relative humidity, dew
point, vapor pressure, mixing ratio), and choose from one of four color palettes (Iron, Rainbow, Ice, Greyscale); a lock-image setting prevents extreme hot and cold
temperatures from interfering with images while scanning for issues.
