خانه / ترانسمیتر / ترانسمیتر فشار / Yokogawa / EJA210E-DHS5J-912EN-WD23A2SW00-B/D3 | Yokogawa EJA210E Flange Mounted Differential Pressure Transmitter

ترانسمیتر فشار

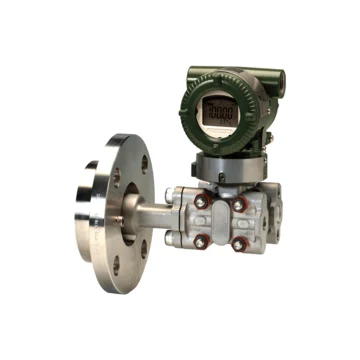

EJA210E-DHS5J-912EN-WD23A2SW00-B/D3 | Yokogawa EJA210E Flange Mounted Differential Pressure Transmitter

Name: EJA210E-DHS5J-912EN-WD23A2SW00-B/D3 | Yokogawa EJA210E Flange Mounted Differential Pressure Transmitter
Brand: Yokogawa
Price: 1622800000 IRR
Availability: InStock

برند :

Yokogawa

پارت نامبر :

EJA210E-DHS5J-912EN-WD23A2SW00-B/D3

شماره انبار :

ST-50608

زمان تحویل:

14 هفته

قیمت حدودی:

162,280,000 تومان

به دلیل سفارشی بودن کالاها و نوسانات قیمت ارز، قیمت‌ها حدودی بوده. لطفا برای اطلاع از قیمت بروز کالا استعلام بگیرید.

تامین کننده

یاران صنعت فجر

ارسال به سراسر کشور

ضمانت اصالت و سلامت فیزیکی کالا

در مورد این محصول

ویژگی ها / Specifications

Model	EJA210E - Flange mounted differential pressure transmitter
Extension	0 - None
Fill fluid	-B - For general use (Silicone oil) [Pressure temperature] 40 to 120?C; [Ambient temperature] 40 to 85?C
Flange size	3 - 3-inch (80mm)
Installation	-9 - Horizontal piping type and left side high pressure
Flange rating	D2 - DIN PN10/16
Output Signal	-D - 4 to 20 mA DC with digital communication (BRAIN protocol)
Flange material	A - JIS S25C
Amplifier housing	1 - Cast aluminum alloy
Calibration unit7	/D3 - bar calibration (bar unit)
Integral Indicator	E -Digital indicator with the range setting switch (push button)?
Electrical connection	2 - 1/2 NPT female, two electrical connections without blind plugs
Gasket contact surface4	2 - Flat (no serration)
Process connection style	W - Flush type
Flushing connection ring6	0 - None
Measurement span (capsule)	H - 5 to 500kPa (20 to 2000 inH2O)
Coverflange bolts and nuts material	J - B7 carbon steel
Low pressure side Process connections	5 - without process connector (1/4 NPT female on the cover flange)
Low pressure side wetted parts material	S - [Cover flange and process connector] ASTM CF-8M?; [Capsule] Hastelloy C-276? (Diaphragm) F316L SST, 316L SST (Others); [Capsule gasket] Teflon-coated 316L SST; [Drain/Vent plug] 316 SST
Wetted parts material (high pressure side)5	SW - [Diaphragm] 316L SST; [Others] 316 SST

Description / توضیحات

Ordering Information N - always N NOTE: Cast version of 316 SST. Equivalent to SCS14A. Hastelloy C-276 or ASTM N10276 Not applicable for output signal code F. See Table 3 Gasket contact surface on Page 5. Users must consider the characteristics of selected wetted parts material and the influence of process fluids. The use of inappropriate materials can result in the leakage of corrosive process fluids and cause injury to personnel and/or damage to plant facilities. It is also possible that the diaphragm itself can be damaged and that material from the broken diaphragm and the fill fluid can contaminate the user s process fluids. Be very careful with highly corrosive process fluids such as hydrochloric acid, sulfuric acid, hydrogen sulfide, sodium hypochlorite, and high-temperature steam (150?C [302?F] or above). Contact Yokogawa for detailed information of the wetted parts material. When specified flushing connection ring code A or B, exclusive gasket is provided for transmitter side. The unit of MWP (Max. working pressure) on the name plate of a housing is the same unit as specified by option code D1, D3, and D4.

Attachment / فایل ضمیمه

General Specifications: EJA210E

General Specifications: EJA-E Series HART 5/HART 7 Communication
