Features
- Measuring Range
- Application A: 1 to 12 pH
- Application B: 0 to 14 pH
- Application F: 0 to 10 pH
- Process Temperature
- Application A: 5 to 176°F (-15 to 80°C)
- Application B: 32 to 275°F (0 to 135°C)
- Application F: 3.2 to 158°F (0 to 70°C)
- Process Pressure
- Application A: 0.8 to 17 bar abs (11.6 to 246.5 psi)
- Application B: 0.8 to 17 bar abs (11.6 to 246.5 psi)
- Application F: 0.8 to 7 bar absolute (11.6 to 101.5 psi)
- Inductive, contactless connection head
- Sterilizable
- IP68 protection
- ATEX, IECEx, and CSA C/US approvals

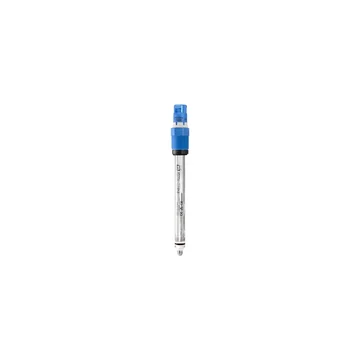

The E+H Memosens CPS11E pH sensor provides long-term monitoring and limit control in processes with stable process conditions. Memosens 2.0 digital technology allows the pH sensor to resist moisture and enable lab calibration, increasing process integrity and simplifying operation. It also offers extended storage of calibration and process data, enabling better trend identification and providing a future-proof basis for predictive maintenance and enhanced IIoT services. The process glass is suitable for the full pH range and is pressure-stable up to 17 bar (246.5 psi). The optional F-glass allows application in media containing hydrofluoric acid such as etching baths in semiconductor production.
Applications
Chemical industry
Pupl and paper industry
Power plants
Incineration plants
Water and wastewater treatment
