Description

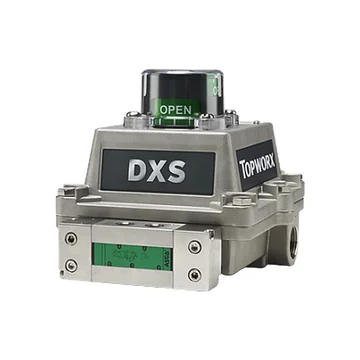

The TopWorx™ DXS is a 316 stainless steel valve controller that combines bus networking, pilot valve, and position sensors into a single globally certified, explosion proof enclosure that attaches to any automated valve package.
Features
Zone 0 Intrinsically Safe
Zone 1 Flameproof/Explosion Proof
Stainless Steel Enclosure 0 Intrinsically Safe
Stainless Steel Enclosure
GO™ Switch Leverless Limit Switches
FOUNDATION Fieldbus
AS-Interface
DeviceNet
Ordering Information
Model DXS 316 Stainless steel (Only available with “R” or “M” shaft options)
Bus/Sensor *FF Foundation Fieldbus w/ 0 -10K Pot
Area Classification 1 Explosion proof / Flame proof (DXP/S only) - North America Class I Div 1 Groups C, D; Class I Div 2, Groups A, B, C, D. (Groups A & B must be hermetically sealed) Type 4, 4X, - ATEX/IECEx Zone 1 II2G, II2GD, T6/T4/T3 Ex d IIB+H2 Ex tb IIIC IP66/67 (O-Rings must be S for DUST certification)
Visual Display G Standard 90°
Green OPEN, Red CLOSED
Shaft N NAMUR
304 stainless steel
Conduit Entries M (2) M20
O-Rings S Silicone
No Adder
* *FF, *FL and *FP with Area Classification “0” has an ib protection
