Features
- 4 Thermocouples (J, K, N, R or T type)
- 10Hz processing rate
- 0.1°C resolution
- ±20ppm/°C FS max
- Choice of °F or °C
- Optional 4 to 20mA or 0 to 10V analog output
- Optional RS232 or RS485 serial port
- Available with up to 4 relay outputs
- Available with low or high voltage power supply
- Data logging capability
- Security PIN protected
- IP65 rated dust & splash proof face
- CE approved & 5-year guarantee

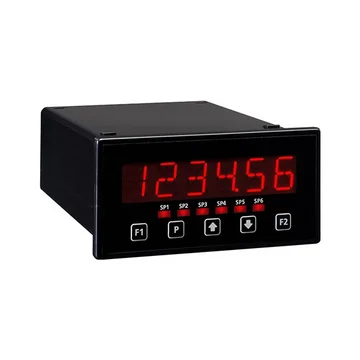

The Define Instruments PRO-TC panel meter accepts input from all common thermocouple sensor types. It averages inputs across 2, 3, or 4
temperature channels, then uses the averaged value for a display source, or data source for the analog output, serial output, setpoint control,
or peak and valley values.
The unit also uses input signal averaging to reduce noise and ensure stable measurements. If the change in input exceeds the averaging window
value it will not average, ensuring fast response when there are large differences between readings. If your input signal contains large noise
spikes you can increase the size of the averaging window to ensure that these are still averaged as well.
You can configure up to 4 setpoints, depending on the number of relays you select. Your settings remain secure with PIN protection;
the input calibration and setpoint functions have independent codes so you can give access to one and not the other. It also features
an option to log and store your data in the controller's internal memory, where it can be printed or accessed with Excel-compatible programs
for easy analysis.
