Features
- Accepts input from up to four RTD sensors
- Supplies 160µA excitation
- 0.1°C resolution
- ±30ppm/°C FS max span drift
- 5Hz processing rate
- Choice of °F or °C
- Optional 4 to 20mA or 0 to 10V analog output
- Optional RS232 or RS485 serial port
- Available with up to 4 relay outputs
- Available with low or high voltage power supply
- Data logging capability
- Security PIN protected
- IP65 rated dust & splash proof face
- CE approved & 5-year guarantee

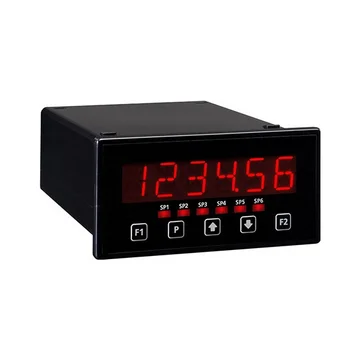

The Define Instruments PRO-RTD panel meter accepts direct sensor input from RTD 385, 392, and CU10 temperature probes.
It can average inputs across 2, 3, or 4 temperature channels and use the averaged value for a display source, as a data
source for analog output, serial output, setpoint control, or the peak and valley values. The PRO-RTD features an option
to log and store your data in the controller's internal memory, where it can be printed or accessed with Excel-compatible
programs for easy analysis.
The PRO-RTD uses input signal averaging to reduce noise and ensure stable measurements. If the change in input exceeds the
averaging window value it will not average, ensuring fast response when there are large differences between readings. If your
input signal contains large noise spikes you can increase the size of the averaging window to ensure that these are still averaged
as well. Your settings remain secure with PIN protection; the input calibration and setpoint functions have independent codes so you
can give access to one and not the other.
