Features
- Simple operation and cost-effective
- ON/OFF and Proportional control
- Control output of 3A or 16A
- Input sensor: Thermocouple (J, K), RTD (Pt100 Ohm)
- Finger protection of terminal
- Size: W72 x H36 x L77mm
- IP65 rated for dust and water protection
- 100 to 240VAC supply power
- 3-digit, 15mm LED display

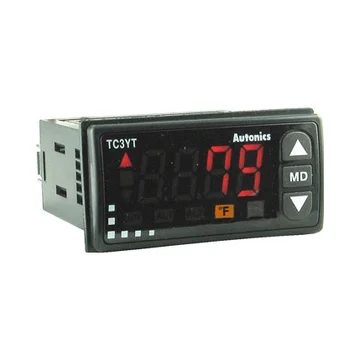

The cost-effective and simple-to-use Autonics TC3YT temperature controller accepts type J or K thermocouples
or Pt100Ω RTDs. The Autonics TC3YT temperature controller is available with a relay capacity of either
3 or 16 amps.
Setting the Autonics TC3YT temperature controller is simple via a 3-button keypad on the front of the unit. The
bright 3-digit LED display is large and easy to view. The low cost of the Autonics TC3YT temperature controller
belies the fact that it is tough and durable controller. In addition to being rated for a life span of at least 10
million switching cycles, the Autonics TC3YT temperature controller is also IP65 rated for dust and water protection.
The Autonics TC3YT temperature controller can handle ambient temperatures ranging from -10 to 50°C. With
a response time of just 500ms and an accuracy of ±0.5%, this is a controller that performs well for almost
any application. At just 72mm (W) x 36mm (H) x 77mm (L), the Autonics TC3YT temperature controller is small
enough to fit almost anywhere.
Input Specification & Control Range
Input
Control Range
Sensor
°C
°F
K t/c
0-999
32-999
J t/c
0-400
32-752
PT-H
0-400
32-752
PT-L
-99-199
-146-390
Applications for the Autonics TC3YT Temperature Controller
Food warming equipment
Packaging machines
Wine chillers
Hot stamping
Heat tracing
Glue pots
Heat sealing
