Features
- Single phase
- Integrated heatsink
- Left/right terminal type
- Input voltage: 10 to 30 VDC, 90 to 240 VAC
- Load voltage: 24 to 240 VAC, 48 to 480 VAC
- Load current: 10A, 15A, 20A, 25A
- Zero cross turn-on
- Input indicator (green LED)
- Alarm function
- DIN rail mount or panel mount installation

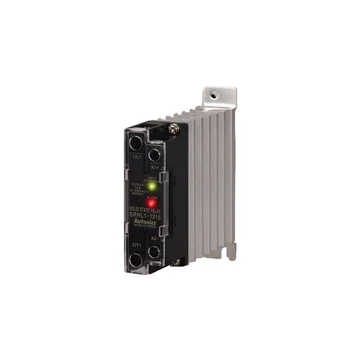

The Autonics SRHL1 Series Single-Phase SSR feature integrated heatsinks for excellent heat dissipation efficiency. The left/right terminal layout provides more flexible installation options. The SRHL1 series is available in zero cross turn-on and random turn-on models, and also feature alarm functions for safer operation. The units support both DIN rail mount and panel mount methods.
