Features
- Super version panel meter
- Display range: -1999 to 9999
- 7-segment LCD display with 14.2mm character height
- Various output options Indicator (default), RS485 communication output, low speed serial output, current (4-20mA) output, BCD output, NPN/PNP open collector output, relay output
- Sizes:

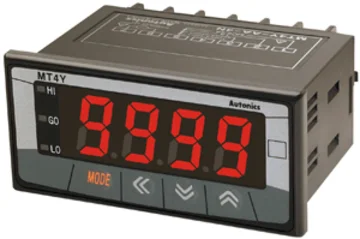

- MT4Y: W72×H36mm

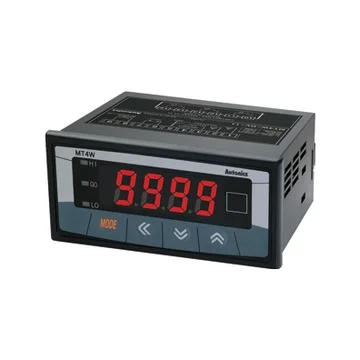

- MT4W: W96×H48mm
- Prescale function
- Max. measuring input specification : 500 V DC, 500 V AC, 5 A DC, 5 A AC
- AC frequency measurement: 0.1 to 9999 Hz
- Power supply: 12-24VDC, 100-240VAC
- Functions:
- Monitoring function for max. and min. display value function
- Display cycle delay function
- Zero function
- High display correction function
- Current output scale function
The Autonics MT4 series panel meter is a super version panel meter with various functions such as AC frequency measuring function, zero adjustment function and transmission output scale function. This series is the super version of panel meter which realizes -1999 to 9999 max display range, wide power supply range and various output option selection. The MT4 series is available in two sizes. The MT4W (W96×H48mm) and the MT4Y (W72×H36mm).
