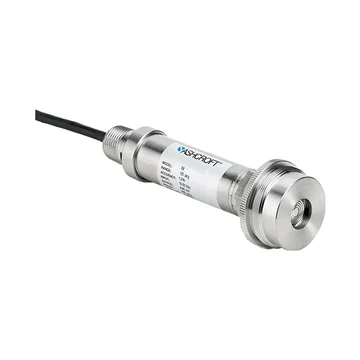

Ashcroft KX Flush Mount Pressure Transducer

Features

• Flush-mounted integral 316 SS diaphragm
  • All-welded stainless steel wetted materials
• Pressure ranges from 100 to 5,000 psi
• ±1.0% of span accuracy
• Current or voltage output signals
• NEMA 4X IP65

The Ashcroft KX flush mount pressure transducer features a poly-silicon thin film sensor and flush-mounted integral 316 stainless steel diaphragm. This creates a small sensing area and low internal volume which make the KX an ideal fit for applications with process media that can clog a standard sensor. Measuring pressure from 0 up to between 100 and 5,000 psi, the Ashcroft KX flush mount pressure transducer offers ±1.0% of span accuracy. Both current and voltage outputs are available and the KX features all-welded stainless steel wetted materials and a NEMA 4X (IP65) enclosure.
