Features
- Aluminum die cast housing
- Stainless steel wetted parts
- 3.5 digit LED display
- Outputs:
- 4-20mA or 1-5 V DC
- (2) Photo M0S relay outputs
- Push-button configurability
- for pressure range changes & relay adjustments
- Two sensor design for high DP ranges

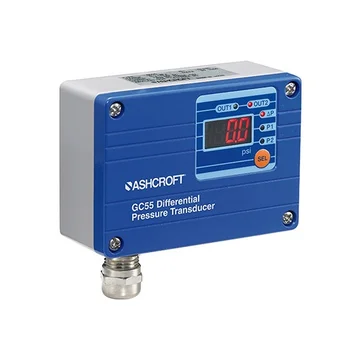

The Ashcroft GC55 wet/wet differential pressure transducer is a compact, high-differential pressure transducer
ideal for filter monitoring, HVAC hydronic cooling and heating systems, and pump controls. A three wire 4 to 20mA
or 1-5VDC output signal connects the transducer to external controls or data acquisition.

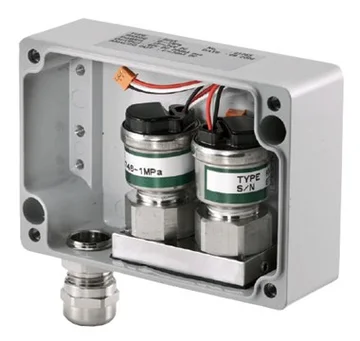

Ashcroft GC55 wet/wet differential pressure transducers contain two polysilicon thin film sensors with
welded, stainless steel, wetted components to accommodate wet or dry pressure media up to 300 psid. A robust,
cast aluminum housing features a bright LED front-panel display for local indication and switch status along
with a button to allow the user to select between the dP value and the line pressure reading from either sensor.
The user also has the ability to re-range the transducer and set trip points for the on-board switch contacts.
