Features
- 4 voltage and 3 current input terminals
- 2000V phase to phase
- 1000V phase to neutral
- Up to 500kV voltage ratio
- 1 to 50th harmonic measurement including direction
- 40 to 70Hz frequency
- Real-time color waveforms
- Captures up to 51 transients
- 2GB of memory for trend data
- 4000 alarm events
- IEC 61000-4-30 Class B
- Safety rated to 600V CAT IV
- 3 year warranty if registered within 30 days from purchase

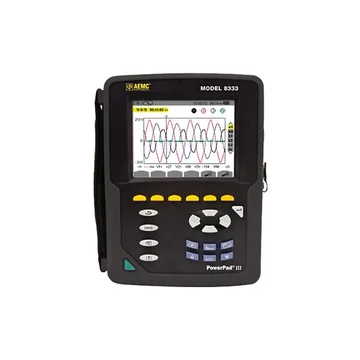

The AEMC PowerPad III model 8333 power quality analyzers are easy-to-use, compact and shock resistant. The 8333 has memory available for storing trend data, alarms, transients, and snapshot data. The user can store up to 12 screen snapshots, up to 51 captured transients that contain four cycles for each active input, and 4,000 alarm events from up to 10 different parameters. Trend data can also be recorded for days, weeks or even months.
AEMC PowerPad III Model 8333 Power Quality Analyzers Applications
Verification of power distribution circuits
In-plant troubleshooting of power distribution panels and individual machinery
Monitor pad mount transformers and phase unbalances
Determine harmonic problems originating from source or load
Determine transformer K-Factor
Energy metering (kVAh, VARh, kWh)
