Features
- Simple to use, single-, dual- (split-phase) and three-phase (Y, Δ) power & energy logger
- Measures volts, amps, watts, VARs, kWh, power factor and harmonics out to the 50th
- 5 voltage and 4 current measurement inputs
- Track energy costs including time of use
- Provides all the necessary functions for power and energy data logging for 50Hz, 60Hz, 400Hz and DC distribution systems
- Waterproof IP67 rated including the current sensors
- Wi-Fi, Bluetooth Class 1, USB, LAN and Ethernet communication built in
- Powered from phase inputs up to 1000VAC or from a wall receptacle
- User selectable storage rates and demand intervals
- Pole mountable
- Can be configured directly from the front panel, through the DataView® control panel or the free Android App
- Satisfies the recommendations of NEC 220.87
- Minimal programming required
- Automatic recognition of the connected current sensors/probes up to 10,000AAC (sensor dependent)
- DataView® software for data storage, real-time display, analysis and report generation
- Designed to work in 1000V CAT IV environments
- Supports 17 different network connections

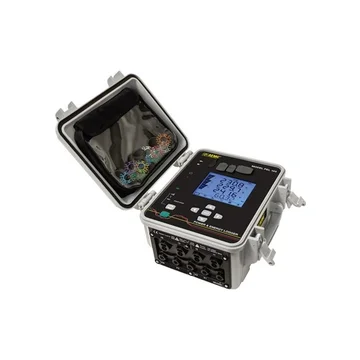

The AEMC PEL 105 is a simple to use, power and energy data logger that monitors both traditional and renewable energy sources. It monitors and records
power, energy, cost and harmonics locally or from anywhere in the world. The PEL 105 is built into a waterproof case with an IP67 rating designed for
outdoor use and is ideal for pole mounting. This product is perfect for electricians, engineers and contractors doing work in the areas of building and
system monitoring and upgrades, including compliance to article 220.87 of the NEC, as well as overall energy audits and incoming power monitoring. It
is available with an Android™ App to configure, view and capture data wirelessly. Bluetooth and Wi-Fi wireless communication provides the operator with
the ability to work from a safe distance away from dangerous voltages and currents without the need to wear PPE gear.
Applications for the AEMC PEL 105 Power and Energy Data Logger include:
Measure efficiency and finds areas for potential savings
Assign energy costs to departments or operations
Track peak demand periods and find opportunities for surcharge reductions
Determine present capacity and circumvent unnecessary electrical expansion costs
Verify the reliability and operation of electrical machinery
Improve response time to solve power related problems
Track energy availability and reliability of supply
Baseline studies for system upgrades in high-rise and office buildings
