ControlLogix 5580 Controller Features

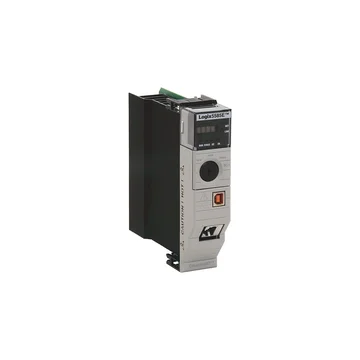

Feature 1756-L85E
Controller tasks 32 tasks
1000 programs/task
Built-in communication ports(1) 1-port USB(2)
Embedded Ethernet port
USB port communication USB 2.0
Full speed (12 Mbps)
Programming, configuration, firmware update, and online edits only
Ethernet performance 10/100/1000 Mbps
I/O Capacity (Class 0/1) - packets/second(3)(4)
128,000 without CIP Security™
40,000 with integrity
20,000 with integrity and confidentiality
Message Rate Capacity HMI/MSG (Class 3) - messages/second(3)(4) 2000 without CIP Security
1500 with integrity
900 with integrity and confidentiality
Communication options EtherNet/IP™
ControlNet®
DeviceNet®
Data Highway Plus™
Remote I/O
SynchLink™
Third-party process and device networks
EtherNet/IP nodes supported max(5) 300 node(1)
Network connections, per network module located in the local chassis ControlLogix 5580 Controllers front EtherNet/IP port. See ‘EtherNet/IP nodes supported, max’ in this table.
256 EtherNet/IP; 128 TCP (1756-EN2x)
128 EtherNet/IP; 64 TCP (1756-ENBT)
100 ControlNet (1756-CN2/A)
40 ControlNet (1756-CNB/D, 1756-CNB/E)
128 ControlNet (1756-CN2/B)
With Studio 5000 Logix Designer Application Version 28 or greater.
The USB port is intended for temporary local programming purposes only and not intended for permanent connection. Do not use the USB port in hazardous locations.
I/O numbers are maximums; they assume no HMI/MSG. HMI/MSG numbers are maximums, they assume no I/O. Maximums assume the processor is the target, not the originator. Packet rates vary depending on packet size. For more details, see Troubleshoot EtherNet/IP Application Technique, publication ENET-AT003, and the EDS file for a specific catalog number.
For information on integrity and confidentiality, see the CIP Security with Rockwell Automation Products Application Technique, publication SECURE-AT001.
A node is an EtherNet/IP device that you add directly to the I/O configuration, and counts toward the node limits of the controller. For more information on EtherNet/IP nodes, see the ControlLogix 5580 Controllers User Manual, publication1756-UM543.
