Features
- Multi-range pressure measurement
- 0 to 7 MPa, 10 MPa sg & 16 MPa sg
- 0 to 25 MPa sg, 50 MPa sg, 70 Mpa sg
- 0.01% of reading basic accuracy
- 0.0001 MPa (0.1 kPa) resolution
- 1/2 NPT female thread input port
- Hastelloy C276 diaphragm & SUS316 input port

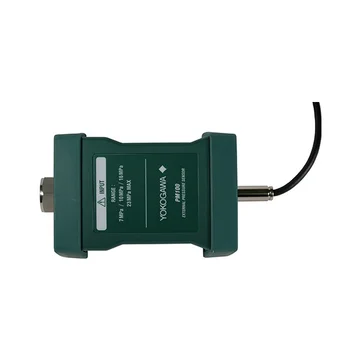

The Yokogawa PM100 external pressure sensor, when paired with the Yokogawa CA700 pressure calibrator, offers measurement up to 70 MPa with a basic accuracy of 0.01% of reading. One sensor allows for measurement across three ranges. Users can select between lower pressures of 0 to 7 MPa sg, 0 to 10 MPa sg and 0 to 16 MPa sg or higher pressures of 0 to 25 MPa sg, 0 to 50 MPa sg and 0 to 70 Mpa sg. This Yokogawa external pressure sensor also offers a resolution of 0.0001 MPa (0.1 kPa). The PM100 features a Hastelloy C276 diaphragm and SUS316 1/2-inch NPT female thread input port.
