Features
- Accuracy: ±0.05% of full scale +1 digit
- Operating current: 3.6mA to 28mA
- Ambient temperature: -22 to 140°F (-30 to 60°C)
- Explosion protection: FM, CSA, ATEX, and IEC
- Numerical: six 7-segment digits

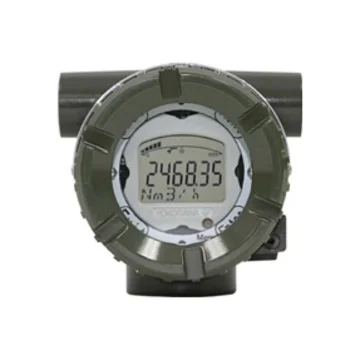

The Yokogawa MLX Loop-Powered Process Indicator receives DC current signals from
electronic transmitters and indicates process measurement values. Standard models are
general purpose.
The MLX is the latest addition to Yokogawa's family of loop powered indicators operating
from a 4-20 mA DC input This model uses the same explosion proof housing as the MLA, MLD,
and MLD1 and incorporates the LCD display from the EJX pressure transmitter. The display
itself contains a 6 digit numerical display, a 6 digit alphanumeric display for engineering
units and a 20 segment bar graph indicating 0 to 100% of full scale. The display is user
configurable to show the desired engineering units. Another unique feature is square root
extraction from a pressure transmitter signal for flow measurement. Please consult our
general specification or instruction manual regarding product related details, options,
mounting and wiring.
