Features
- 0 to 58,000 psi (0 to 4000 bar) pressure range
- 170cm³ oil reservoir for pressure transmission medium
- Choice of VG22 mineral oil or sebacate oil
- Precisely adjustable dual-area spindle pump
- Compact dimensions 401 x 397 x 155 mm (W x D x H)

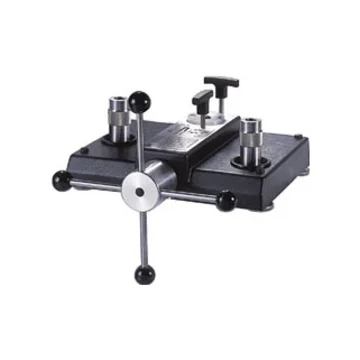

The WIKA CPP4000 hydraulic pressure pump serve as pressure generators for the testing, adjustment and calibration of mechanical and electronic pressure measuring instruments through comparative measurements. These units can be used in the laboratory or workshop, or on-site at the measuring point. The integrated dual-area spindle pump with switching valves enables rapid filling of the test system and smooth pressure generation. The two test connections are equipped with G1/2 female loose union connections with double ended metal cone. Two threaded adapters mounted on M16 x 1.5 male thread are also included. Further thread adapters are available for the calibration of instruments with different connection threads.
