Features
- DMS Go+ comes with D-pad (arrow key) control
- 0.010 to 25in (0.40 to 650mm) measuring range in steel
- 0.0098 to 0.6299in/µs (250 to 16,000m/s) mat. velocity
- 0.0001 or 0.01in (0.01 or 0.1mm) display resolution
- LCD display, 800 x 480 pixels
- USM Go flaw detector upgrade available
- Flip function allows for left or right hand use
- Vibration and shock tested
- IP67 sealed for dust & water protection

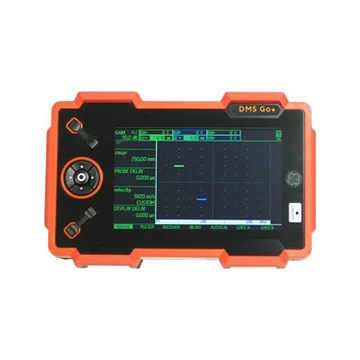

The Waygate Technologies DMS Go Thickness Gauge combines an intuitive user interface, powerful data management, and an ability to provide accurate, reliable and comprehensive thickness inspection data. It has automatic gain control for excellent repeatability and corrosion monitoring. The main unit comes in three models: DMS Go+ Basic Uses A-scan verification and is compatible with high quality D-Meter dual element probes to handle a wide range of corrosion thickness applications. DMS Go+ (Base) Takes the basic features and adds B-scan (timed) for cross-sectional view and compatibility with single element probes for precision thickness measurement and temperature compensated readings up to 1000°F (540°C). DMS Go+ Advanced Can do all of the above and provides additional features of 6 data recording file structures plus 3D & 4D via UltraMATE and TopCoat/Auto-V measurement capabilities to eliminate removal of many coatings. For comparison at a glance, view the DMS Go+ model differentiation table. Waygate Technologies DMS Go Thickness Gauge Applications Oil & Gas Inspection and monitoring of corrosion in tubes, vessels and tanks Measurement of remaining wall thickness through paint coatings Power Generation Inspection of complex geometry tubes Monitoring boiler efficiency by measuring oxide scale in boiler tubes with special probe OSS-10 Aerospace Maintenance checks Metals Industry Thickness measurement of austenitic materials Waygate Technologies is formerly known as GE Inspection Technologies (GEIT)
