Features
- PID control loops
- Over/under temperature limit control loops
- 10 and 15 ampere power output/heater driver options
- On-board data logging
- Current measurement input
- Sequencer start up and control function
- Programmable timer and counter functions
- Programmable math and logic options
- Multiple communication protocols options
- Mobile configuration with removable secure digital (SD) flash card

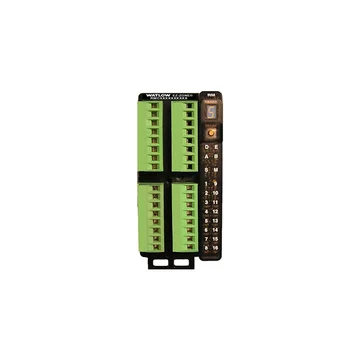

The Watlow EZ-ZONE RM Expansion controller simplifies thermal system management. The EZ-ZONE RM controller family is
comprised of six module types: an integrated on-off or PID control, monitoring and over/under temperature limit

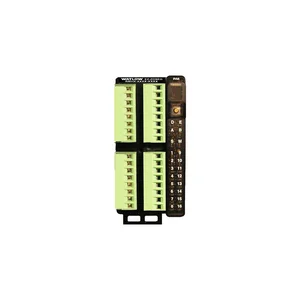

module, a high-density on-off or PID control module, a high-density limit only module, an input/output (I/O)
expansion module, a high-density monitor/scanner module and a data logging and field communications
access module. A system is configured by connecting any combination of module types to address specific
application needs. The EZ-ZONE RM is extremely flexible and scalable allowing mixing and matching of I/O to
configure 1 to 152 control loops and up to 256 monitor points.
Benefits of using an integrated controller solution:
Reduces wiring time and termination complexity compared with connecting multiple discrete products
Improves system reliability
Reduces termination and installation cost
Eliminates compatibility issues often encountered with using various discrete components and brands
Reduces troubleshooting time and downtime costs because the system can specifically identify any problems with a sensor, controller, solid state relay
(SSR) power output or heater load
Complete thermal solution saves engineering time and labor costs while shortening project schedules
Multiple inputs; from 1 to 152 PID loops of control or monitor up to 256 analog inputs
Mix and match I/O to fit any application; from 1 input with 2 outputs to 152 analog inputs with 152 outputs, or
monitor up to as many as 256 analog inputs all in one system
Reduces cost because only required loops are purchased
Allows a common controller platform across many design applications as both loops and outputs can be ordered in single increments
Additional Key Functions
Configuration communication port (standard bus)
Removable modules and connectors
Ring lug and front-screw terminal options
Profile ramp soak with 400 total steps
Retransmit and remote set point input virtually inside controller eliminating costs for input/output hardware
User configuration settings can be stored and recalled
Thermistor input
Elevated operating range of 0 to 149°F (-18 to 65°C)
UL® listed, CSA, CE, RoHS, W.E.E.E. FM, SEMI F47-0200, Class 1, Div. 2 rating on selected models
