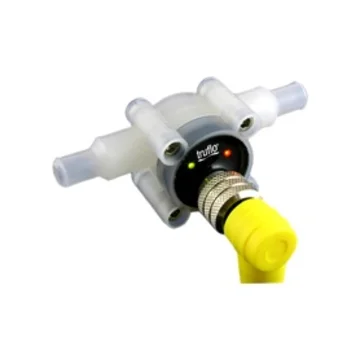

TruFlo ProPulse Series Turbine Flow Meter

Features

• Universal body
• ±1% FS accuracy
• Flow ranges:
  • 0.05 to 0.50 lpm
  • 0.12 to 1.50 lpm
  • 0.20 to 4.50 lpm
  • 0.25 to 6.50 lpm
  • 0.30 to 10.0 lpm
  • 0.50 to 15.0 lpm
• ±0.1% repeatability
• 150 psi pressure rating
• Viton O-ring seals
• PVDF, sapphire body, and internals
• Excellent chemical resistance
• No programming required

The TruFlo ProPulse series turbine flow meters consist of one universal body that can be customized into five selectable flow ranges. Changing from one flow range to another is achieved by inserting a very precise flow jet. The flow ranges are as low as 0.05 to 0.50 lpm (0.013 to 0.132) and as high as 0.50 to 15.0pm (0.132 to 3.963 gpm). The ProPulse has an accuracy of ±1% full scale and a repeatability of ±0.1%. The ProPulse operates using a PVDF rotor with encapsulated magnetic inserts which rotate on a long wearing set of sapphire bearings designed to provide years of reliability.
