Features
- DC V to 1000 V, AC V to 750 V
- AC/DC current to 3 A
- Two and four wire resistance
- Frequency from 3 Hz to 300 kHz
- Period and diode measurement
- Temperature measurements

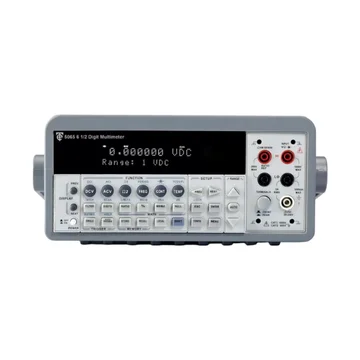

The Time Electronics 5065 Bench Digital Multimeter is ideal for applications ranging from testing and calibration to education. The comprehensive range of features makes the 5065 suitable for test engineers, R&D, service, and calibration technicians. The durable construction with a protective rubber guard and carry handle allows convenient benchtop use, and transportability.
The 5065 measures AC/DC voltage, AC/DC current, 2 and 4 wire resistance, frequency, period, diode, continuity, thermocouples and RTD. In addition to standard functions many other capabilities such as Min/Max, Ratio/% and Null are included. Memory functions with up to 2000 readings can be stored and recalled. Limit testing with an external output can be configured to signal pass or fail.
