Features
- 0 to 22 V DC
- 15 ppm accuracy, 0.5 ppm resolution
- 1999999 full scale +10 % over-range
- –9.999 % to +9.999 % deviation control
- Ramping feature
- RS-232, USB, GPIB interfaces

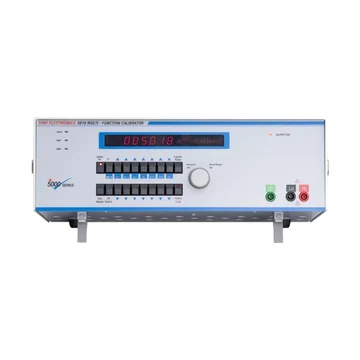

The Time Electronics 5018 Programmable Voltage and Current Calibrator can be configured as a dedicated single function DC voltage source, or as an advanced AC/DC voltage and current calibrator. Primarily designed for production environments and R&D, the 5018 can be controlled via PC or laptop, programmed to perform any number of tasks as part of a complex ATE test rig. The 5018 includes an internal ramping feature. A ramp rate per range for each function can be set via a PC. The option to ramp the output can be turned on or off via the front panel. This is particularly useful in aviation and automotive industriesfor testing analogue gauges. Front panel operation allows the user to quickly set the function and output required. Using the jog / shuttle dial deviation the user can finely adjust the output value as a percentage (± 99.99 %). These interfaces allow the 5018 to be connected to a PC and controlled by an external program such as EasyCal calibration software.
