Features
- 5 fixed resistance ranges: 1Ω, 10Ω, 100Ω, 1kΩ, 10kΩ
- High accuracy
- 1Ω range: ±1mΩ
- 10Ω range: ±5mΩ
- 100Ω range: ±10mΩ
- 1kΩ range: ±100mΩ
- 10kΩ range: ±1Ω
- Clear visual indication
- Portable and compact
- Simple operation
- Robust casing
- Ideal for education

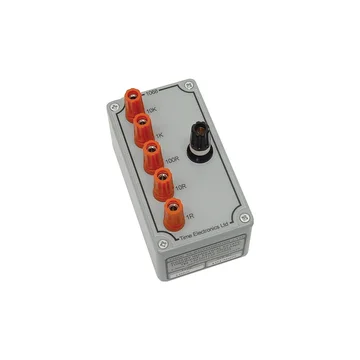

Time Electronics 1068 fixed resistance box is a compact, highly accurate instrument with five fixed resistance values designed for industrial,
general laboratory, and education requirements.
Housed in a robust case the 1068 is easily portable and takes up minimal bench space. Being a low cost and simple operation instrument it is a
popular model for physics and electronics laboratories in universities and schools.
The high accuracy obtained in the Time Electronics 1068 is achieved by the use of precision resistors. To select a value simply connect test
leads to one of the fixed value resistors; 1Ω, 10Ω, 100Ω, 1kΩ, or 10kΩ.
Connection to the box is via 4mm binding posts and the values are clearly indicated beside each terminal.
