Ordering Information

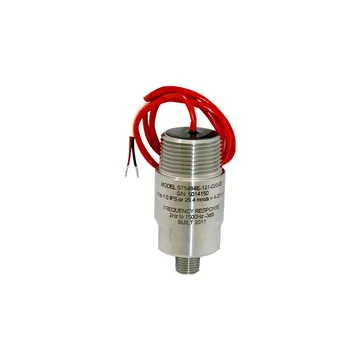

Model ST5484E Seismic Velocity 4-20 mA Velocity Transmitter
Full Scale Range(1) 153 2.0 in/sec (50.8 mm/s) true RMS
Housing Material & Stud Size(1) 0 303 SS housing, ¼” NPT stud
Hazardous Area Certification(2),(3),(4) 8 ATEX/IECEx, Ex d IIC T4 Gb (explosion proof)
Connection Type(2) 0 24” Flying Leads, 2-wire; (4-20 mA output only)
High-Pass Filter 0 2 Hz (standard)
Low-Pass Filter 0 1500 Hz (standard)
Smaller-diameter mounting studs are not able to withstand sustained ambient vibration levels above 2.0 in/sec. Consult Table 2 for allowable combinations of A and B options.
Hazardous Area Certifications are not compatible with all connection types. Consult Table 3 for allowable combinations of C & D options.
Some approvals require intrinsic safety barriers, others require Explosion-Proof wiring practices. Refer to Table 4.
ATEX/IECEx/INMETRO Ex d (flameproof) approvals (ordering option C=8 or C=6) require conduit elbow 8200-AAA-IEC, sold separately.
