Features
Independent adjustment of stroke range and zero
Adjustable amplification and damping
Split range up to 3-fold possible
One version for 0 to 20 mA and 4 to 20 mA input
Supply pressure up to 6 bar (90 psig)
Low vibration effect in all directions
Mounting according to IEC 534, part 6 (NAMUR)
Rotation adapter for angles up to 120°
Explosion protection:
II 2 G EEx ib/ia IIB/IIC T4/T6 according ATEX or intrinsically safe according to FM and CSA
EMC in accordance with international standards and laws (CE)
Limit switches
Position transmitter
Booster
Connection manifold
Ordering Information

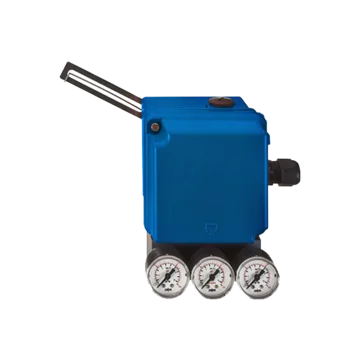

Model SRI986 Electro-Pneumatic Positioner
Version -B Single Acting
Input I Signal Range 4 - 20 mA
Built-In Limit Switch/Position Transmitter S Without
Cable Entry 7 M20 x 1.5 With One Plastic Cable Gland, Color Gray
Attachment Kit N Order as Auxiliary
Manifold A Order as Auxiliary
Not available with Limit Switch Codes R, V.
